ASEMPLV-125.000MHZ-XR footprint, schematic symbol and 3D model by ABRACON

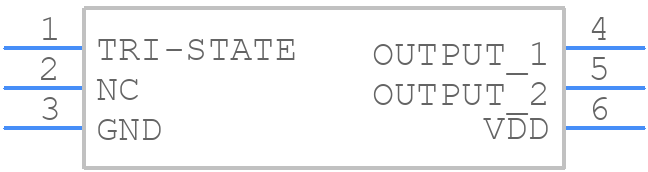

Symbol

PCB Footprints

3D Models

ASEMPLV-125.000MHZ-XR Details

Manufacturer Part Number:
ASEMPLV-125.000MHZ-XR
Rohs Code:
Yes
Part Life Cycle Code:
Active
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
25%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
125 MHz
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC6,.1,41
Physical Dimension:
3.2mm x 2.5mm x 0.85mm
Supply Current-Max:
32 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.25 V
Surface Mount:
YES
Symmetry-Max:
52/48 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends a symmetrical PCB layout with a solid ground plane, and to keep the crystal as close as possible to the microcontroller or oscillator circuit. Additionally, it's recommended to use a guard ring around the crystal to minimize noise and interference.
The ASEMPLV-125.000MHZ-XR is designed to operate within a specific temperature range (-20°C to 70°C). To minimize the effects of temperature and humidity, ensure proper PCB design, use a conformal coating, and consider using a temperature-controlled environment. Additionally, Abracon recommends following the recommended storage and handling procedures to prevent damage.
The recommended drive level for the ASEMPLV-125.000MHZ-XR is typically in the range of 1-10 μW. However, it's essential to consult the specific microcontroller or oscillator circuit's datasheet for the recommended drive level, as it may vary depending on the application.
While the ASEMPLV-125.000MHZ-XR is designed to be rugged, it's still susceptible to vibration. Abracon recommends following the recommended mounting and handling procedures to minimize the effects of vibration. Additionally, consider using a vibration-dampening material or a more robust crystal design for high-vibration applications.
Abracon offers custom frequency tolerance options for the ASEMPLV-125.000MHZ-XR. Consult with Abracon's sales team or application engineers to discuss your specific requirements and determine the best solution for your application.

Manufacturer Collaborated

System Verified

Community Approved

Use the download button to access the ASEMPLV-125.000MHZ-XR schematic symbol, PCB footprint, and 3D model.
