ASEMPLV-25.000MHZ-X footprint, schematic symbol and 3D model by ABRACON

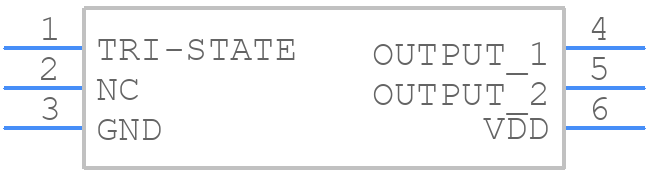

Symbol

PCB Footprints

3D Models

ASEMPLV-25.000MHZ-X Details

Manufacturer Part Number:
ASEMPLV-25.000MHZ-X
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Thailand
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; DIFFERENTIAL OUTPUT
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
50%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
25 MHz
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVDS
Output Load:
100 OHM
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
SOLCC6,.1,41
Physical Dimension:
3.2mm x 2.5mm x 0.85mm
Screening Level:
MIL-STD-883
Supply Current-Max:
32 mA
Supply Voltage-Max:
3.6 V
Supply Voltage-Min:
2.25 V
Surface Mount:
YES
Symmetry-Max:
52/48 %
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends storing the ASEMPLV-25.000MHZ-X in a dry, cool place, away from direct sunlight and moisture, with a temperature range of -40°C to 85°C and relative humidity of 60% or less.
Yes, the ASEMPLV-25.000MHZ-X is designed to withstand high-vibration environments, with a vibration resistance of 20G peak acceleration, 10-2000Hz frequency range, and 3 axes (X, Y, Z) according to MIL-STD-202, Method 204.
Yes, the ASEMPLV-25.000MHZ-X is compatible with lead-free soldering processes, with a peak reflow temperature of 260°C and a soldering process that meets the requirements of IPC/J-STD-020D.
The typical power consumption of ASEMPLV-25.000MHZ-X is approximately 1.5mA, with a maximum power consumption of 3mA, depending on the operating frequency and load conditions.
Yes, the ASEMPLV-25.000MHZ-X is designed to operate in high-temperature environments, with an operating temperature range of -40°C to 85°C, and a storage temperature range of -40°C to 125°C.
