ASFLMB-80.000MHZ-LY-T footprint, schematic symbol and 3D model by ABRACON

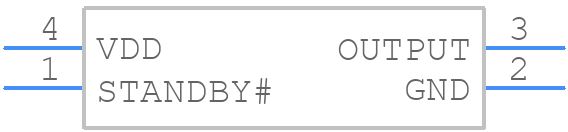

Symbol

PCB Footprints

3D Models

ASFLMB-80.000MHZ-LY-T Details

Manufacturer Part Number:
ASFLMB-80.000MHZ-LY-T
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
ROHS COMPLIANT, ULTRA MINIATURE, PLASTIC, QFN-4
Country Of Origin:
Thailand
Factory Lead Time:
8 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
TRI-STATE; STANDBY; ENABLE/DISABLE FUNCTION; TR; SUPPLY VOLTAGE 1.8V AND 2.5V ALSO AVAILLABLE
Fall Time-Max:
2 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
10%
JESD-609 Code:
e4
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Max:
150 MHz
Operating Frequency-Min:
1 MHz
Operating Frequency-Nom:
80 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
10 KOHM, 15 pF
Package Body Material:
PLASTIC/EPOXY
Package Equivalence Code:
DILCC4,.12
Physical Dimension:
5.0mm x 3.2mm x 0.85mm
Qualification Status:
Not Qualified
Rise Time-Max:
2 ns
Supply Current-Max:
15 mA
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %
Technology:
CMOS
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)

Abracon recommends a symmetrical PCB layout with a solid ground plane, and the oscillator should be placed as close as possible to the microcontroller or IC. A minimum of 10 mils (0.25 mm) clearance around the oscillator is recommended to minimize electromagnetic interference.
To ensure reliable startup, Abracon recommends a power-up ramp time of 1 ms to 10 ms, and a power supply voltage of 1.8 V to 3.3 V. Additionally, the oscillator should be decoupled with a 10 nF to 100 nF capacitor between VCC and GND.
The ASFLMB-80.000MHZ-LY-T has an operating temperature range of -40°C to +85°C, making it suitable for most commercial and industrial applications.
Yes, the ASFLMB-80.000MHZ-LY-T is compatible with lead-free soldering processes, making it suitable for RoHS-compliant designs.
The typical current consumption of the ASFLMB-80.000MHZ-LY-T is around 10 mA to 20 mA, depending on the specific application and operating conditions.
