ASG2-D-X-B-1000.000MHZ - ABRACON

Description: 1GHz XO (Standard) LVDS Oscillator 2.5V Enable/Disable 6-SMD, No Lead

Download ASG2-D-X-B-1000.000MHZ Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

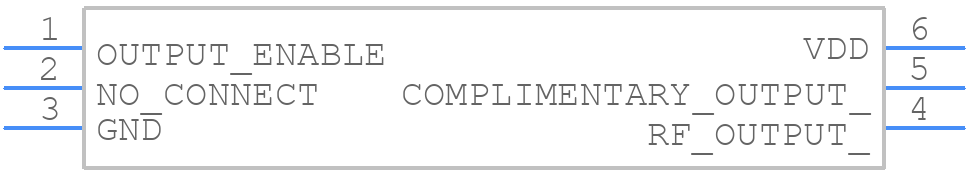

Symbol
ASG2-D-X-B-1000.000MHZ - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASG2-D-X-B-1000.000MHZ - ABRACON PCB footprint - Other - Other - ASG2-D-X-B-1000.000MHZ-1
click to zoom
3D Models
ASG2-D-X-B-1000.000MHZ - ABRACON - 3D model - Other - ASG2-D-X-B-1000.000MHZ-1
click to zoom

ASG2-D-X-B-1000.000MHZ Details

  • Manufacturer Part Number:

    ASG2-D-X-B-1000.000MHZ

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SMD, 6 PIN

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT

  • Fall Time-Max:

    0.6 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    35%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    1000 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVDS

  • Output Load:

    100 OHM, 10 pF

  • Package Body Material:

    CERAMIC

  • Package Equivalence Code:

    SOLCC6,.08,38

  • Physical Dimension:

    2.5mm x 2.0mm x 1.0mm

  • Rise Time-Max:

    0.6 ns

  • Supply Current-Max:

    40 mA

  • Supply Voltage-Max:

    2.625 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

ASG2-D-X-B-1000.000MHZ Frequently Asked Questions (FAQs)

  • The recommended land pattern for the ASG2-D-X-B-1000.000MHZ can be found in the Abracon Corporation's technical documentation, specifically in the 'Layout and Assembly' section of the datasheet or in the 'Application Notes' section of the Abracon website.
  • The thermal resistance of the ASG2-D-X-B-1000.000MHZ is not explicitly stated in the datasheet. However, it's recommended to consult with Abracon Corporation's technical support team or refer to the 'Thermal Considerations' section of the datasheet for guidance on thermal management.
  • Yes, the ASG2-D-X-B-1000.000MHZ is compatible with lead-free soldering processes. Abracon Corporation ensures that their products meet the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The operating temperature range of the ASG2-D-X-B-1000.000MHZ is -40°C to +85°C, as specified in the datasheet.
  • Yes, the ASG2-D-X-B-1000.000MHZ is suitable for high-reliability applications. Abracon Corporation ensures that their products meet the requirements of various industry standards, such as AEC-Q200 for automotive applications.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASG2-D-X-B-1000.000MHZ Overview

Use the download button to access the ASG2-D-X-B-1000.000MHZ schematic symbol, PCB footprint, and 3D model.
