ASG2-P-X-A-500.000MHZ - ABRACON

Description: XTAL OSC XO 500.0000MHZ LVPECL

Download ASG2-P-X-A-500.000MHZ Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ASG2-P-X-A-500.000MHZ model

Email notifications will be applied after download.

Send part feedback

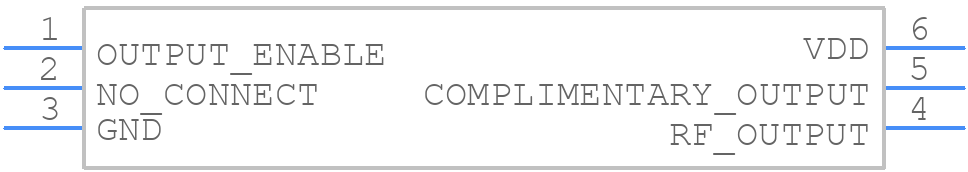

Symbol

ASG2-P-X-A-500.000MHZ - ABRACON - PCB symbol

PCB Footprints

ASG2-P-X-A-500.000MHZ - ABRACON PCB footprint - Other - Other - ASG2-P-X-A-500.000MHZ-1

3D Models

ASG2-P-X-A-500.000MHZ - ABRACON - 3D model - Other - ASG2-P-X-A-500.000MHZ-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASG2-P-X-A-500.000MHZ
Part Number ASG2-P-X-A-500.000MHZ
Manufacturer ABRACON
Pin Count 6
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - ASG2-P-X-A-500.000MHZ-1
Released Date Apr 30, 2023
Last Modified Date May 2, 2023 9:54 AM UTC
Pinout / Pin List Click Here (Member Only)

ASG2-P-X-A-500.000MHZ Details

Manufacturer Part Number:
ASG2-P-X-A-500.000MHZ
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SMD, 6 PIN
Factory Lead Time:
18 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
6
Additional Feature:
ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT
Fall Time-Max:
0.6 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
35%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
6
Operating Frequency-Nom:
500 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
LVPECL
Output Load:
50 OHM
Package Body Material:
CERAMIC
Physical Dimension:
2.5mm x 2.0mm x 1.0mm
Rise Time-Max:
0.6 ns
Supply Current-Max:
65 mA
Supply Voltage-Max:
3.465 V
Supply Voltage-Min:
3.135 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

ASG2-P-X-A-500.000MHZ Frequently Asked Questions (FAQs)

The operating temperature range of the ASG2-P-X-A-500.000MHZ is -40°C to +85°C.
Yes, the ASG2-P-X-A-500.000MHZ is designed for high-reliability applications and is built with a ruggedized design to withstand harsh environments.
The typical start-up time of the ASG2-P-X-A-500.000MHZ is 2-5 ms.
Yes, the ASG2-P-X-A-500.000MHZ has a typical jitter of 50 ps, making it suitable for applications requiring low jitter.
Yes, the ASG2-P-X-A-500.000MHZ is compatible with lead-free soldering processes and is RoHS compliant.

Trust Checks

Manufacturer Collaborated

System Verified

Community Approved

ASG2-P-X-A-500.000MHZ Overview

Use the download button to access the ASG2-P-X-A-500.000MHZ schematic symbol, PCB footprint, and 3D model.
