ASTMK-2.048KHZ-MP-DCC-J-T - ABRACON

Description: MEMS OSC XO 2.0480KHZ LVCMOS SMD

Download ASTMK-2.048KHZ-MP-DCC-J-T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this ASTMK-2.048KHZ-MP-DCC-J-T model

Email notifications will be applied after download.

Send part feedback

Symbol

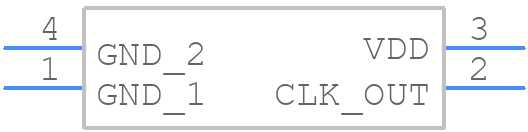

ASTMK-2.048KHZ-MP-DCC-J-T - ABRACON - PCB symbol

PCB Footprints

ASTMK-2.048KHZ-MP-DCC-J-T - ABRACON PCB footprint - Other - Other - ASTMK-2.048KHZ-MP-DCC-J-T-1

3D Models

ASTMK-2.048KHZ-MP-DCC-J-T - ABRACON - 3D model - Other - ASTMK-2.048KHZ-MP-DCC-J-T-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for ASTMK-2.048KHZ-MP-DCC-J-T
Part Number ASTMK-2.048KHZ-MP-DCC-J-T
Manufacturer ABRACON
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - ASTMK-2.048KHZ-MP-DCC-J-T-1
Released Date Jul 16, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ASTMK-2.048KHZ-MP-DCC-J-T Details

Manufacturer Part Number:
ASTMK-2.048KHZ-MP-DCC-J-T
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
CSP, 4 PIN
Factory Lead Time:
28 Weeks
Manufacturer:
Abracon Corporation
YTEOL:
0
Additional Feature:
TR, 7 INCH
Fall Time-Max:
200 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
75%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Nom:
0.002048 MHz
Operating Temperature-Max:
70 °C
Operating Temperature-Min:
-10 °C
Oscillator Type:
LVCMOS
Output Load:
15 pF
Physical Dimension:
1.54mm x 0.84mm x 0.6mm
Rise Time-Max:
200 ns
Supply Voltage-Max:
3.63 V
Supply Voltage-Min:
1.2 V
Surface Mount:
YES
Symmetry-Max:
52/48 %

ASTMK-2.048KHZ-MP-DCC-J-T Frequently Asked Questions (FAQs)

The recommended operating temperature range for the ASTMK-2.048KHZ-MP-DCC-J-T is -40°C to +85°C.
The typical start-up time for the ASTMK-2.048KHZ-MP-DCC-J-T is 5ms.
The ASTMK-2.048KHZ-MP-DCC-J-T is designed to withstand high-vibration environments, with a vibration sensitivity of 1.0g (10-2000Hz).
Abracon recommends using a 10nF to 100nF decoupling capacitor between the VCC pin and GND pin to ensure stable operation.
Yes, the ASTMK-2.048KHZ-MP-DCC-J-T is RoHS and REACH compliant, meeting the requirements of the European Union's directives on hazardous substances.

Trust Checks

Expert Contribution

System Verified

Community Approved

ASTMK-2.048KHZ-MP-DCC-J-T Overview

Use the download button to access the ASTMK-2.048KHZ-MP-DCC-J-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like ASTMK, or try a keyword search, such as XO
