ASVMPC-26.000MHZ-LR-T - ABRACON

Description: Oscillator MEMS 26MHz ?25ppm (Stability) CMOS 55% 2.5V/3.3V 6-Pin QFN EP SMD T/R

Download ASVMPC-26.000MHZ-LR-T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

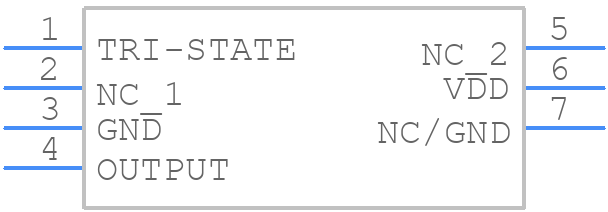

Symbol
ASVMPC-26.000MHZ-LR-T - ABRACON - PCB symbol
click to zoom
PCB Footprints
ASVMPC-26.000MHZ-LR-T - ABRACON PCB footprint - Other - Other - ASVMP
click to zoom
3D Models
ASVMPC-26.000MHZ-LR-T - ABRACON - 3D model - Other - ASVMP
click to zoom

ASVMPC-26.000MHZ-LR-T Details

  • Manufacturer Part Number:

    ASVMPC-26.000MHZ-LR-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN, 6 PIN

  • Country Of Origin:

    Thailand

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    5.88

  • Additional Feature:

    STANDBY; TRI-STATE; ENABLE/DISABLE FUNCTION

  • Fall Time-Max:

    2 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    6

  • Operating Frequency-Nom:

    26 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CMOS

  • Output Load:

    15 pF

  • Output Low Current-Max:

    6 mA

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Equivalence Code:

    DILCC6,.2

  • Physical Dimension:

    7.0mm x 5.0mm x 0.85mm

  • Qualification Status:

    Not Qualified

  • Rise Time-Max:

    2 ns

  • Screening Level:

    MIL-STD-883

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    2.25 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Technology:

    CMOS

ASVMPC-26.000MHZ-LR-T Frequently Asked Questions (FAQs)

  • The recommended termination resistance for the ASVMPC-26.000MHZ-LR-T is 1 kΩ.
  • Yes, the ASVMPC-26.000MHZ-LR-T is designed to operate in a wide temperature range (-40°C to 85°C) and can withstand harsh environments, but it's essential to follow proper PCB design and layout guidelines to ensure reliable operation.
  • To ensure reliable startup, ensure the power supply voltage is stable and within the recommended range (1.8V to 3.3V), and the oscillator is properly decoupled with a 0.01 μF to 0.1 μF capacitor between VCC and GND.
  • The typical current consumption of the ASVMPC-26.000MHZ-LR-T is around 10 mA, but this can vary depending on the specific application and operating conditions.
  • While the ASVMPC-26.000MHZ-LR-T is designed for 26 MHz operation, it's essential to evaluate the oscillator's performance in your specific high-frequency application, considering factors like signal integrity, noise tolerance, and PCB design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ASVMPC-26.000MHZ-LR-T Overview

Use the download button to access the ASVMPC-26.000MHZ-LR-T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ASVMP, or try a keyword search, such as XO
