AT25FF321A-SHN-B - Adesto Technologies

Description: NOR Flash 32 Mbit, Wide Vcc (1.65V to 3.6V), -40C to 85C, SOIC-W 208mil (Tube), Single, Dual, Quad SPI NOR flash

Download AT25FF321A-SHN-B Model
Schematic

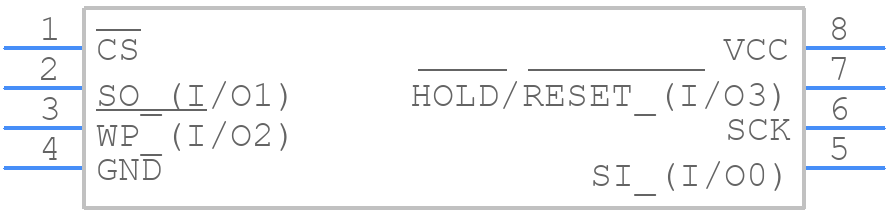

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT25FF321A-SHN-B - Adesto Technologies PCB footprint - Small Outline Packages - Small Outline Packages - 8S2_1
click to zoom
3D Models
AT25FF321A-SHN-B - Adesto Technologies  - 3D model - Small Outline Packages - 8S2_1
click to zoom

AT25FF321A-SHN-B Details

  • Manufacturer Part Number:

    AT25FF321A-SHN-B

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Date Of Intro:

    2020-02-05

  • Manufacturer:

    Adesto Technologies Corporation

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    5.29 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.000013 A

  • Supply Current-Max:

    0.0146 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.65 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    5.24 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT25FF321A-SHN-B Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the AT25FF321A-SHN-B is 2.7V to 3.6V, as specified in the datasheet. However, it's essential to note that the device can operate down to 2.5V, but with reduced performance and reliability.
  • To ensure reliable data retention in the AT25FF321A-SHN-B, it's crucial to follow the recommended storage conditions, such as storing the device in a cool, dry place, away from direct sunlight and radiation. Additionally, the device should be powered down before storage, and the storage temperature should be within the recommended range of -40°C to 85°C.
  • The AT25FF321A-SHN-B supports up to 100,000 erase cycles, as specified in the datasheet. However, it's essential to note that the actual number of erase cycles may vary depending on the usage and operating conditions.
  • To handle page write and erase operations in the AT25FF321A-SHN-B, it's recommended to follow the sequence specified in the datasheet. This includes sending the appropriate commands, such as the page write command (0x02) or the erase command (0x20), followed by the required address and data. It's also essential to ensure that the device is properly powered and that the clock frequency is within the recommended range.
  • The WP# (Write Protect) pin in the AT25FF321A-SHN-B is used to prevent accidental writes or erases to the device. When the WP# pin is pulled low, the device is in a protected state, and any write or erase operations will be ignored. When the WP# pin is pulled high, the device is in a normal operating state, and write and erase operations can be performed.
