AT25QL641-UUE-T - Adesto Technologies

Description: NOR Flash 1.7-3.6V 85C WLCSP-T&R

Download AT25QL641-UUE-T Model

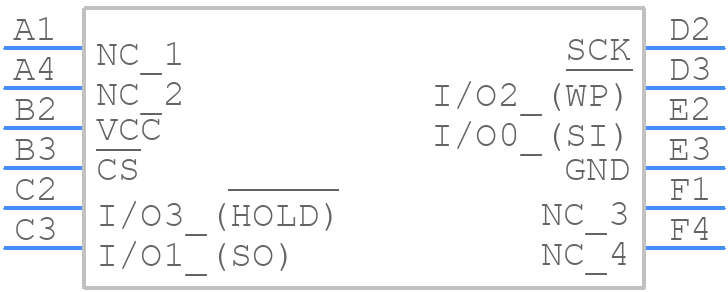

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AT25QL641-UUE-T - Adesto Technologies PCB footprint - BGA - BGA - 8-WLCSP — die Ball Grid Array
click to zoom
3D Models
AT25QL641-UUE-T - Adesto Technologies  - 3D model - BGA - 8-WLCSP — die Ball Grid Array
click to zoom

AT25QL641-UUE-T Details

  • Manufacturer Part Number:

    AT25QL641-UUE-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    WLCSP-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Adesto Technologies Corporation

  • Clock Frequency-Max (fCLK):

    133 MHz

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PBGA-B8

  • Length:

    3.007 mm

  • Memory Density:

    67108864 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX8

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    VFBGA

  • Package Equivalence Code:

    BGA12,4X6,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    GRID ARRAY, VERY THIN PROFILE, FINE PITCH

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    0.52 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.00005 A

  • Supply Current-Max:

    0.025 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    BALL

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    BOTTOM

  • Width:

    1.924 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT25QL641-UUE-T Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the AT25QL641-UUE-T is 1.7V to 3.6V.
  • The AT25QL641-UUE-T allows up to 256 bytes to be written in a single write operation.
  • The AT25QL641-UUE-T supports up to 100,000 erase cycles.
  • The AT25QL641-UUE-T has a minimum data retention period of 20 years.
  • Yes, the AT25QL641-UUE-T is compatible with the SPI bus protocol.
