AT45DB081E-SSHN2B-T - Adesto Technologies

Description: IC FLASH 8MBIT SPI 85MHZ 8SOIC

Download AT45DB081E-SSHN2B-T Model

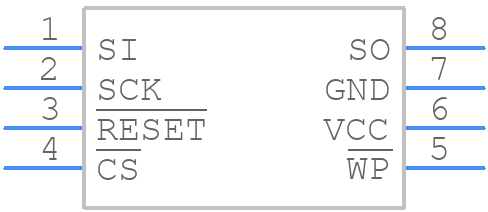

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download

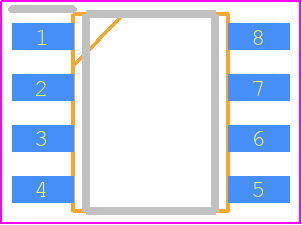

PCB Footprints
AT45DB081E-SSHN2B-T - Adesto Technologies PCB footprint - Small Outline Packages - Small Outline Packages - 8S1 - SOIC
click to zoom
3D Models
AT45DB081E-SSHN2B-T - Adesto Technologies  - 3D model - Small Outline Packages - 8S1 - SOIC
click to zoom

AT45DB081E-SSHN2B-T Details

  • Manufacturer Part Number:

    AT45DB081E-SSHN2B-T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    0.150 INCH, GREEN, PLASTIC, MS-012AA, SOIC-8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Adesto Technologies Corporation

  • Clock Frequency-Max (fCLK):

    85 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.925 mm

  • Memory Density:

    8388608 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    8388608 words

  • Number of Words Code:

    8000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    8MX1

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Programming Voltage:

    2.7 V

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Serial Bus Type:

    SPI

  • Standby Current-Max:

    0.000001 A

  • Supply Current-Max:

    0.016 mA

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Type:

    NOR TYPE

  • Width:

    3.9 mm

  • Write Protection:

    HARDWARE/SOFTWARE

AT45DB081E-SSHN2B-T Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the AT45DB081E-SSHN-T is 2.7V to 3.6V.
  • Page writes and block erases on the AT45DB081E-SSHN-T should be handled using the device's command set, which includes commands for page write, block erase, and chip erase. The device also has a built-in error correction mechanism to ensure data integrity.
  • The AT45DB081E-SSHN-T supports up to 100,000 erase cycles per block, with a total of 2048 blocks.
  • Wear leveling on the AT45DB081E-SSHN-T can be implemented using a combination of hardware and software techniques, including dynamic wear leveling, static wear leveling, and bad block management. The device also has built-in features to support wear leveling, such as block locking and block replacement.
  • The AT45DB081E-SSHN-T has a minimum data retention period of 20 years at 25°C, and 10 years at 85°C.
