ATA6844-PLQW-1 - Microchip

Description: IC MOTOR DRIVER 5.25V-32V 48QFN

Download ATA6844-PLQW-1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

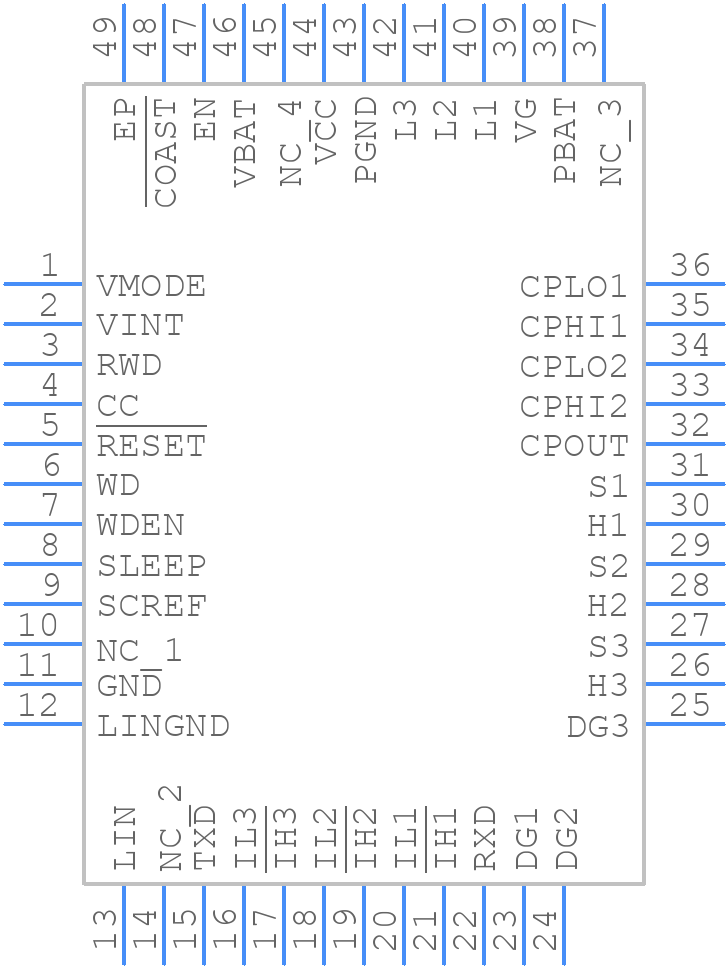

ATA6844-PLQW-1 - Microchip - PCB symbol
click to zoom
PCB Footprints
ATA6844-PLQW-1 - Microchip PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN48_2023
click to zoom
3D Models
ATA6844-PLQW-1 - Microchip - 3D model - Quad Flat No-Lead - QFN48_2023
click to zoom

ATA6844-PLQW-1 Details

  • Manufacturer Part Number:

    ATA6844-PLQW-1

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    QFN-48

  • Pin Count:

    48

  • Manufacturer Package Code:

    VQFN-48

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.31.00.01

  • Factory Lead Time:

    7 Weeks

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    19

  • Analog IC - Other Type:

    3-PHASE BRUSHLESS DC MOTOR CONTROLLER

  • JESD-30 Code:

    S-XQCC-N48

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    48

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC48,.27SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    0.95 mm

  • Supply Current-Max (Isup):

    7 mA

  • Supply Voltage-Max (Vsup):

    34 V

  • Supply Voltage-Min (Vsup):

    5.5 V

  • Supply Voltage-Nom (Vsup):

    7.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

ATA6844-PLQW-1 Frequently Asked Questions (FAQs)

  • A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the high-frequency signals away from the power and ground planes. Use a decoupling capacitor (e.g., 100nF) close to the device's power pins.
  • Use the Microchip Technology Inc. configuration tool or consult the application notes (e.g., AN2053) for guidance on configuring the device for specific applications, such as LIN or CAN bus systems.
  • The device operates from -40°C to +150°C (junction temperature). However, the recommended operating temperature range is -40°C to +125°C for optimal performance and reliability.
  • Use a logic analyzer or oscilloscope to monitor the device's signals. Check the power supply, decoupling, and PCB layout. Consult the datasheet, application notes, and Microchip's technical support resources for guidance.
  • The device is not intended for use in safety-critical applications. However, Microchip Technology Inc. offers other devices with functional safety features. Consult the datasheet and application notes for specific information on safety features and certifications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATA6844-PLQW-1 Overview

Use the download button to access the ATA6844-PLQW-1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATA68, or try a keyword search, such as Motion Control Electronics
