ATSAMB11-ZR210CA - Microchip

Description: Bluetooth / 802.15.1 Modules with chip antenna - SmartConnect ATSAMB11 SiP Module

Download ATSAMB11-ZR210CA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

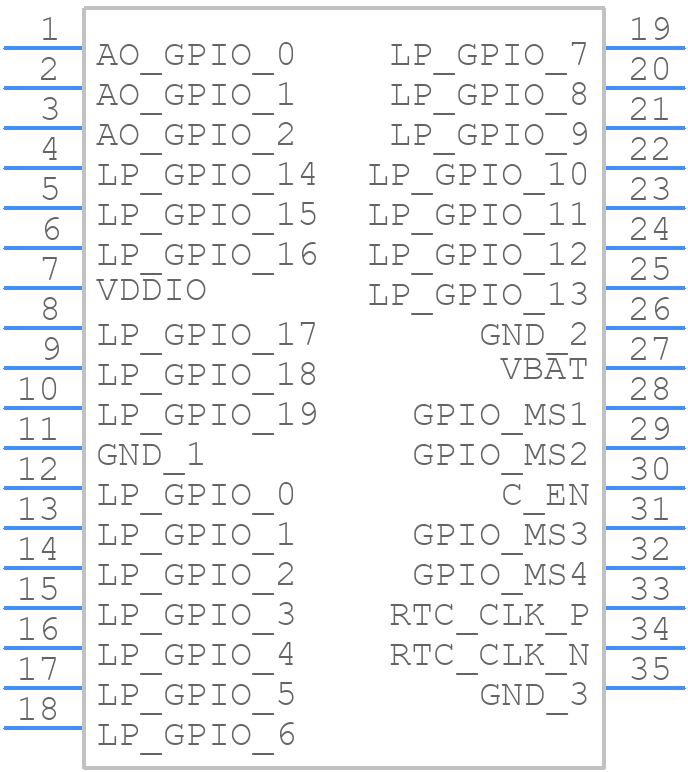

ATSAMB11-ZR210CA - Microchip - PCB symbol
click to zoom
PCB Footprints
ATSAMB11-ZR210CA - Microchip PCB footprint - Other - Other - ATSAMB11-ZR210CA
click to zoom
3D Models
ATSAMB11-ZR210CA - Microchip - 3D model - Other - ATSAMB11-ZR210CA
click to zoom

ATSAMB11-ZR210CA Details

  • Manufacturer Part Number:

    ATSAMB11-ZR210CA

  • Part Life Cycle Code:

    Active

  • Package Description:

    MODULE-35

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.31.00.01

  • Date Of Intro:

    2017-09-28

  • Manufacturer:

    Microchip Technology Inc

  • JESD-30 Code:

    R-XXMA-N35

  • Length:

    10.541 mm

  • Number of Functions:

    1

  • Number of Terminals:

    35

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Screening Level:

    TS 16949

  • Seated Height-Max:

    1.868 mm

  • Supply Voltage-Nom:

    3.6 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.61 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    7.503 mm

ATSAMB11-ZR210CA Frequently Asked Questions (FAQs)

  • The recommended antenna design for optimal performance is a quarter-wave monopole antenna with a length of approximately 17.5mm. The antenna should be placed at least 10mm away from any metal components or edges to minimize detuning.
  • To configure the module for optimal power consumption, set the transmission power to the lowest level required for your application, use the sleep mode when the module is not transmitting, and use the auto-sleep feature to automatically put the module into sleep mode when not in use.
  • The maximum data transfer rate of the ATSAMB11-ZR210CA module is 2Mbps.
  • Yes, the ATSAMB11-ZR210CA module can be used with non-Microchip microcontrollers, but it may require additional programming and configuration to ensure compatibility.
  • The ATSAMB11-ZR210CA module supports AES-128 encryption and can be used with Microchip's CryptoAuthentication devices for secure authentication. Implementing security features requires programming and configuration of the module and microcontroller.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATSAMB11-ZR210CA Overview

Use the download button to access the ATSAMB11-ZR210CA schematic symbol, PCB footprint, and 3D model.
