ATZB-RF-212B-0-U - Microchip

Description: RF Modules ZigBit AT86212B UFL

Download ATZB-RF-212B-0-U Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

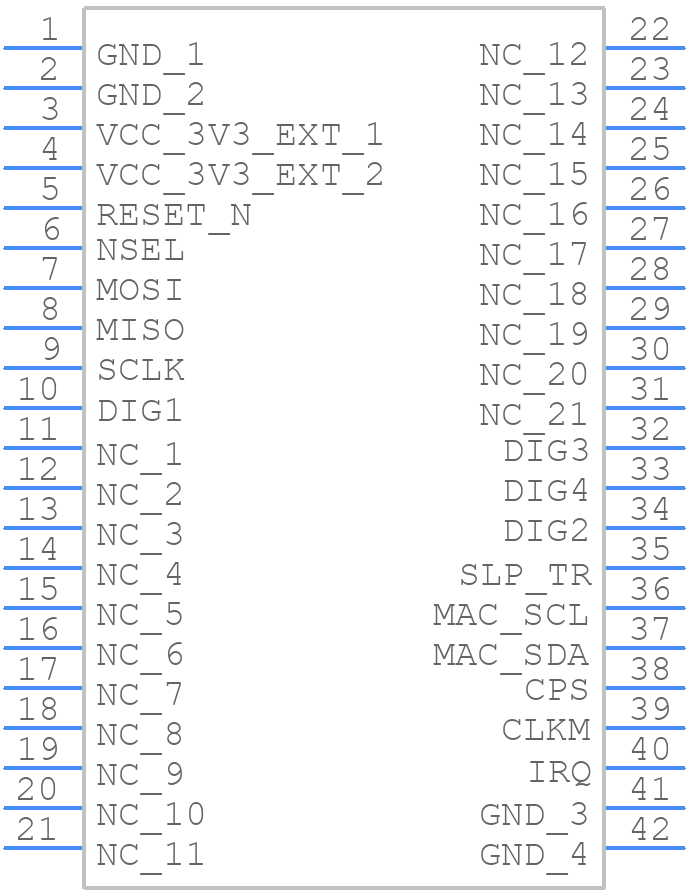

ATZB-RF-212B-0-U - Microchip - PCB symbol
click to zoom
PCB Footprints

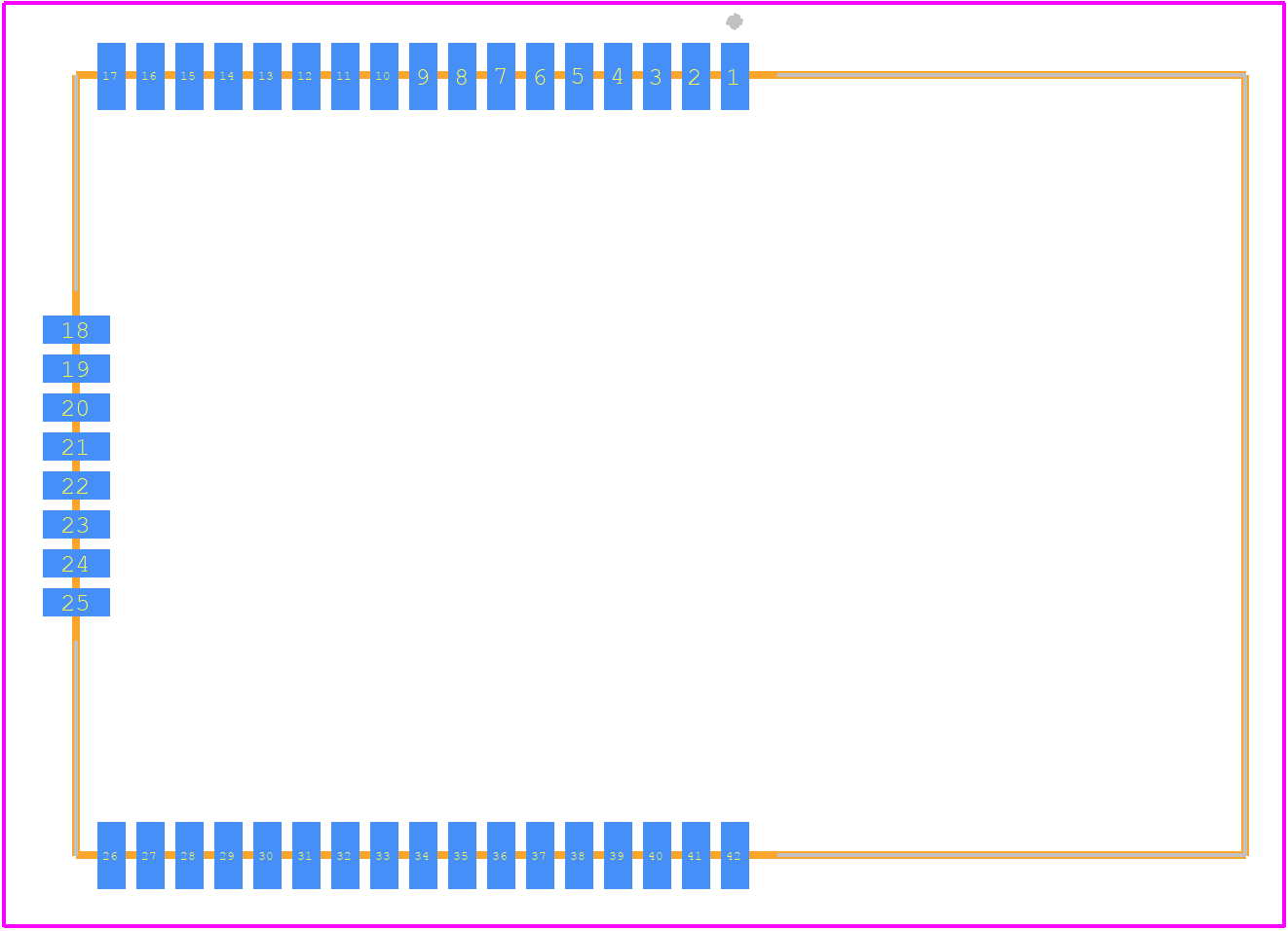

ATZB-RF-212B-0-U - Microchip PCB footprint - Other - Other - ATZB-RF-212B-0-CN-2
click to zoom
3D Models
ATZB-RF-212B-0-U - Microchip - 3D model - Other - ATZB-RF-212B-0-CN-2
click to zoom

ATZB-RF-212B-0-U Details

  • Manufacturer Part Number:

    ATZB-RF-212B-0-U

  • Pbfree Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    MODULE-42

  • Country Of Origin:

    Thailand

  • ECCN Code:

    5A992.C

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Microchip Technology Inc

  • YTEOL:

    0

  • JESD-30 Code:

    R-XXMA-N42

  • Length:

    30 mm

  • Number of Functions:

    1

  • Number of Terminals:

    42

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    3.2 mm

  • Supply Voltage-Nom:

    3 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    1 mm

  • Terminal Position:

    UNSPECIFIED

  • Width:

    20 mm

ATZB-RF-212B-0-U Frequently Asked Questions (FAQs)

  • The ATZB-RF-212B-0-U module operates in the 2.4 GHz frequency band, which is a common frequency range for Zigbee and IEEE 802.15.4 applications.
  • The transmission power of the ATZB-RF-212B-0-U module is up to +20 dBm (100 mW), which provides a reliable and robust wireless connection.
  • Yes, the ATZB-RF-212B-0-U module is compatible with other Zigbee modules that operate in the 2.4 GHz frequency band and follow the Zigbee protocol.
  • The range of the ATZB-RF-212B-0-U module depends on the environment and obstacles, but it can reach up to 100 meters (330 feet) in open space and around 30-50 meters (100-160 feet) in indoor environments.
  • Yes, the ATZB-RF-212B-0-U module supports mesh networking, which allows devices to communicate with each other directly and indirectly through other devices, increasing the overall network reliability and range.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ATZB-RF-212B-0-U Overview

Use the download button to access the ATZB-RF-212B-0-U schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ATZB-, or try a keyword search, such as Other Telecom ICs
