AU-24.000MBE-T - TXC CORPORATION

Description: TXC - AU-24.000MBE-T - OSCILLATOR, 24MHZ, 3.2 X 2.5MM, CMOS

Download AU-24.000MBE-T Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this AU-24.000MBE-T model

Email notifications will be applied after download.

Send part feedback

Symbol

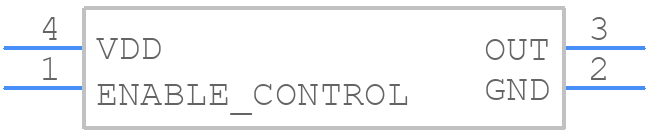

AU-24.000MBE-T - TXC CORPORATION - PCB symbol

PCB Footprints

AU-24.000MBE-T - TXC CORPORATION PCB footprint - Other - Other - AU-24.000MBE-T-1

3D Models

AU-24.000MBE-T - TXC CORPORATION - 3D model - Other - AU-24.000MBE-T-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for AU-24.000MBE-T
Part Number AU-24.000MBE-T
Manufacturer TXC CORPORATION
Pin Count 4
Part Category Crystal or Oscillator
Package Category Other
Footprint Name Other - AU-24.000MBE-T-1
Released Date Jun 1, 2021
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

AU-24.000MBE-T Details

Manufacturer Part Number:
AU-24.000MBE-T
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
SMD, 4 PIN
Country Of Origin:
Taiwan
ECCN Code:
EAR99
Manufacturer:
TXC Corporation
YTEOL:
6
Additional Feature:
AEC-Q100; ENABLE/DISABLE FUNCTION; TR
Fall Time-Max:
5 ns
Frequency Adjustment-Mechanical:
NO
Frequency Stability:
50%
Mounting Feature:
SURFACE MOUNT
Number of Terminals:
4
Operating Frequency-Nom:
24 MHz
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Oscillator Type:
CMOS
Output Load:
15 pF
Physical Dimension:
3.2mm x 2.5mm x 1.0mm
Rise Time-Max:
5 ns
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Symmetry-Max:
55/45 %

AU-24.000MBE-T Frequently Asked Questions (FAQs)

The recommended storage temperature range for AU-24.000MBE-T is -40°C to 125°C.
Yes, AU-24.000MBE-T is compatible with lead-free soldering, making it suitable for RoHS-compliant applications.
The maximum operating temperature range for AU-24.000MBE-T is -20°C to 70°C.
Yes, AU-24.000MBE-T requires anti-static packaging and handling to prevent damage from electrostatic discharge.
Yes, AU-24.000MBE-T is designed to withstand high-vibration environments, making it suitable for industrial and automotive applications.

Trust Checks

Expert Contribution

System Verified

Community Approved

AU-24.000MBE-T Overview

Use the download button to access the AU-24.000MBE-T schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like AU-24, or try a keyword search, such as XO
