AVS227M25F24T-F - Cornell Dubilier

Description: Aluminum Electrolytic Capacitors - SMD 25V 220uF AEC-Q200

Download AVS227M25F24T-F Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
AVS227M25F24T-F - Cornell Dubilier - PCB symbol
click to zoom
PCB Footprints

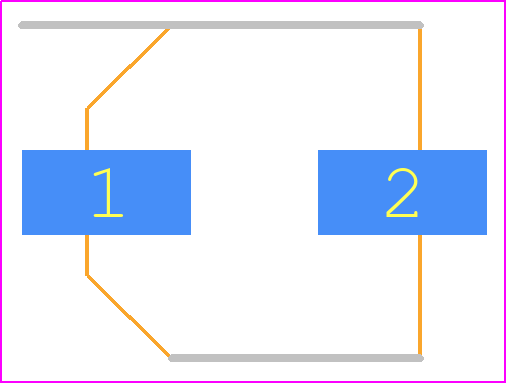

AVS227M25F24T-F - Cornell Dubilier PCB footprint - Capacitor Al Electrolytic - Capacitor Al Electrolytic - AVS227M25F24T-F
click to zoom
3D Models
AVS227M25F24T-F - Cornell Dubilier - 3D model - Capacitor Al Electrolytic - AVS227M25F24T-F
click to zoom

AVS227M25F24T-F Details

  • Manufacturer Part Number:

    AVS227M25F24T-F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    CHIP

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    Knowles CDE

  • YTEOL:

    3

  • Capacitance:

    220 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    8 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    1200 mΩ

  • Height:

    10.2 mm

  • JESD-609 Code:

    e6

  • Leakage Current:

    0.055 mA

  • Length:

    10 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Shape:

    CYLINDRICAL PACKAGE

  • Package Style:

    SMT

  • Packing Method:

    TR

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    25 V

  • Reference Standard:

    AEC-Q200

  • Ripple Current:

    140 mA

  • Size Code:

    3933

  • Surface Mount:

    YES

  • Tan Delta:

    0.16

  • Terminal Finish:

    Tin/Bismuth (Sn/Bi)

  • Terminal Shape:

    FLAT

  • Width:

    8.3 mm

AVS227M25F24T-F Frequently Asked Questions (FAQs)

  • The recommended soldering temperature for the AVS227M25F24T-F is 260°C (500°F) for 10 seconds or less.
  • Yes, the AVS227M25F24T-F capacitor is RoHS (Restriction of Hazardous Substances) compliant, meaning it does not contain hazardous substances like lead, mercury, or cadmium.
  • The derating curve for the AVS227M25F24T-F capacitor can be found in the datasheet, but in general, it is recommended to derate the capacitor's voltage rating by 10-20% for every 10°C (18°F) above 85°C (185°F) to ensure reliable operation.
  • Yes, the AVS227M25F24T-F capacitor is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
  • The ESR of the AVS227M25F24T-F capacitor is typically around 0.02 ohms at 100 kHz, but this value can vary depending on the frequency and operating conditions.
