AX5051-1-TW30 - onsemi

Description: RF Transceiver RADIO TRANSCEIVER

Download AX5051-1-TW30 Model
Schematic

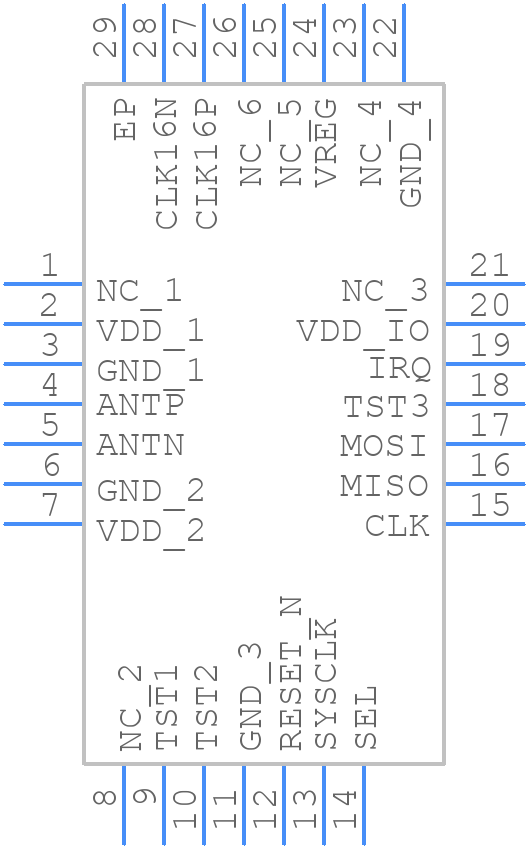

symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
AX5051-1-TW30 - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - AX5051-1-TW30
click to zoom
3D Models
AX5051-1-TW30 - onsemi  - 3D model - Quad Flat No-Lead - AX5051-1-TW30
click to zoom

AX5051-1-TW30 Details

  • Manufacturer Part Number:

    AX5051-1-TW30

  • Brand Name:

    ON Semiconductor

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer Package Code:

    485EF

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.01

  • Factory Lead Time:

    4 Weeks

  • Date Of Intro:

    2020-09-15

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Telecom IC Type:

    TELECOM CIRCUIT

  • Terminal Finish:

    NICKEL GOLD PALLADIUM

  • Time@Peak Reflow Temperature-Max (s):

    30

AX5051-1-TW30 Frequently Asked Questions (FAQs)

  • A thermal pad on the bottom of the package should be connected to a large copper area on the PCB to dissipate heat. A minimum of 2oz copper thickness is recommended. Additionally, vias should be placed under the thermal pad to connect to the copper area.
  • Ensure that the device is operated within the recommended junction temperature range (TJ) of -40°C to 150°C. Also, consider the power dissipation and thermal resistance of the package when designing the system.
  • A 10uF to 22uF X5R or X7R ceramic capacitor is recommended for input decoupling. The capacitor should be placed as close to the VIN pin as possible.
  • Yes, but ensure that the device is properly heatsinked and the thermal design is adequate to handle the increased power dissipation. Also, consider the current limit and power rating of the device.
  • The output voltage can be adjusted by using an external resistor divider network between the VOUT pin and the ADJ pin. The datasheet provides a formula to calculate the required resistor values.
