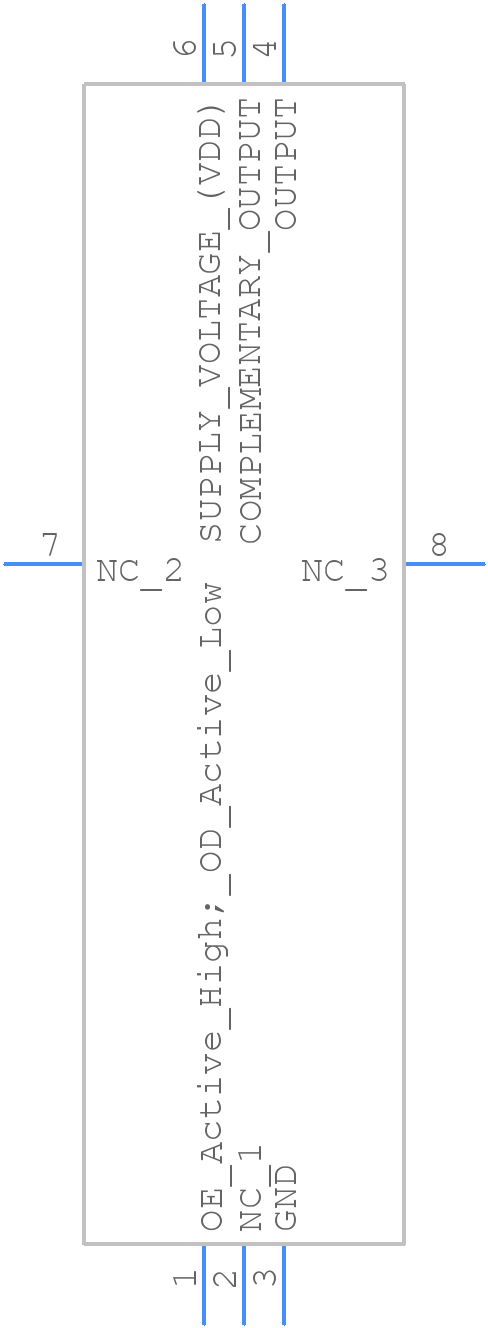

AX5DAF1-300.0000C footprint, schematic symbol and 3D model by ABRACON

Symbol

PCB Footprints

3D Models

AX5DAF1-300.0000C Details

Abracon recommends a symmetrical PCB layout with a solid ground plane, and to keep the crystal and capacitors as close as possible to the oscillator pins. A 4-layer PCB with a dedicated ground plane is also recommended.
To ensure reliable startup, Abracon recommends using a 1-2 kΩ pull-up resistor on the oscillator enable pin, and a 10-100 nF decoupling capacitor on the power supply pin. Additionally, ensure the power supply is stable and within the recommended operating range.
The AX5DAF1-300.0000C is rated for operation from -40°C to +85°C, but Abracon recommends derating the frequency tolerance by 5 ppm/°C for temperatures above 70°C.
No, the AX5DAF1-300.0000C is a fixed-frequency oscillator and cannot be adjusted to operate at a different frequency. Abracon offers other products with adjustable frequencies or different fixed frequencies, so it's best to consult their product catalog or contact their support team for alternatives.
The typical current consumption of the AX5DAF1-300.0000C is around 10-20 mA, but this can vary depending on the specific application and operating conditions. It's recommended to consult the datasheet and Abracon's application notes for more information.
