AX5MCF1-800.0000T - ABRACON

Description: 800 MHz XO (Standard) CML Oscillator 1.8V Enable/Disable 8-SMD, No Lead

Download AX5MCF1-800.0000T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

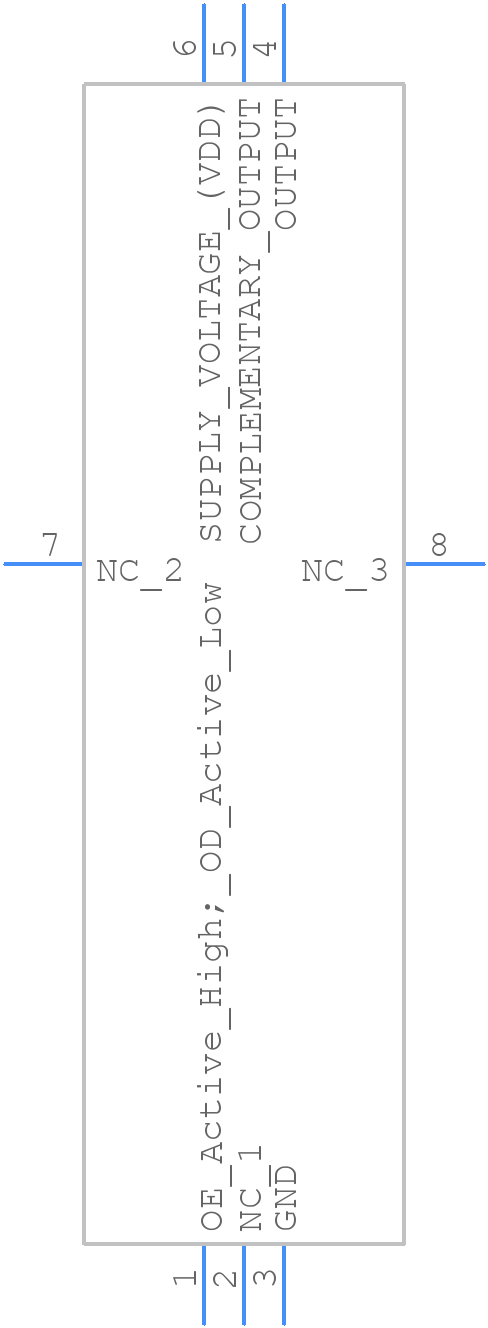

AX5MCF1-800.0000T - ABRACON - PCB symbol
click to zoom
PCB Footprints
AX5MCF1-800.0000T - ABRACON PCB footprint - Other - Other - AX5
click to zoom
3D Models
AX5MCF1-800.0000T - ABRACON - 3D model - Other - AX5
click to zoom

AX5MCF1-800.0000T Details

  • Manufacturer Part Number:

    AX5MCF1-800.0000T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6.3

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TR, 7 INCH

  • Fall Time-Max:

    0.4 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    20%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Nom:

    800 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CML

  • Output Load:

    50 OHM

  • Physical Dimension:

    5.0mm x 3.2mm x 1.4mm

  • Rise Time-Max:

    0.4 ns

  • Supply Voltage-Max:

    1.89 V

  • Supply Voltage-Min:

    1.71 V

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AX5MCF1-800.0000T Frequently Asked Questions (FAQs)

  • Abracon recommends following the recommended PCB layout guidelines provided in the datasheet, ensuring a symmetrical layout, and using a solid ground plane under the oscillator to minimize noise and radiation.
  • To ensure reliable startup, Abracon recommends following the recommended power-up sequence, using a stable power supply, and ensuring the load capacitance is within the specified range.
  • The AX5MCF1-800.0000T is rated for operation from -40°C to +85°C, with a storage temperature range of -55°C to +125°C.
  • The AX5MCF1-800.0000T is designed to meet the requirements of MIL-STD-202, Method 204, Condition D, which includes vibration testing. However, it's recommended to consult with Abracon's application engineers for customized vibration testing and validation.
  • The AX5MCF1-800.0000T has a typical phase noise performance of -120 dBc/Hz at 10 kHz offset from the carrier frequency.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AX5MCF1-800.0000T Overview

Use the download button to access the AX5MCF1-800.0000T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX5MC, or try a keyword search, such as XO
