AX7MBF4-945.0000T - ABRACON

Description: --

Download AX7MBF4-945.0000T Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

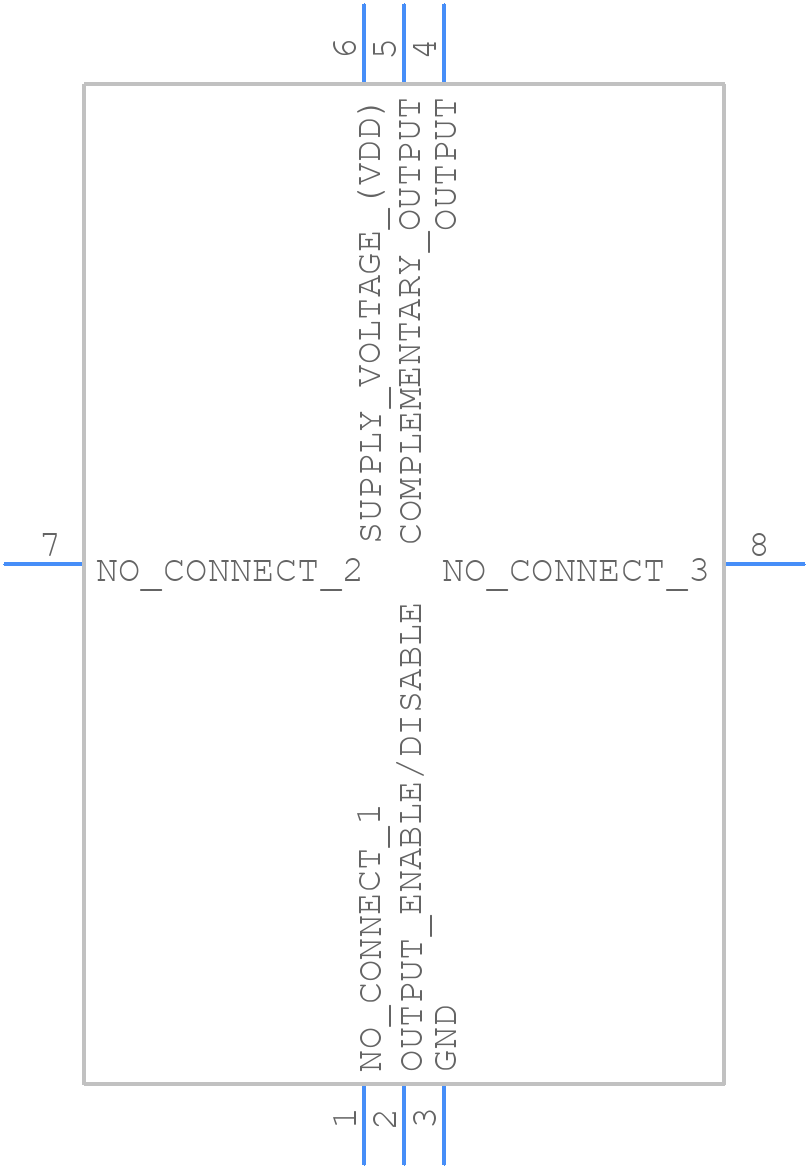

Symbol
AX7MBF4-945.0000T - ABRACON - PCB symbol
click to zoom
PCB Footprints
AX7MBF4-945.0000T - ABRACON PCB footprint - Other - Other - AX7
click to zoom
3D Models
AX7MBF4-945.0000T - ABRACON - 3D model - Other - AX7
click to zoom

AX7MBF4-945.0000T Details

  • Manufacturer Part Number:

    AX7MBF4-945.0000T

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    6.44

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT

  • Fall Time-Max:

    0.35 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • JESD-609 Code:

    e4

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Nom:

    945 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    CML

  • Output Load:

    50 OHM

  • Package Equivalence Code:

    LCC8,.2X.28,100/83

  • Physical Dimension:

    7.0mm x 5.0mm x 1.8mm

  • Rise Time-Max:

    0.35 ns

  • Supply Voltage-Max:

    2.75 V

  • Supply Voltage-Min:

    2.25 V

  • Supply Voltage-Nom:

    2.5 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

  • Terminal Finish:

    NICKEL GOLD

AX7MBF4-945.0000T Frequently Asked Questions (FAQs)

  • Abracon recommends following the recommended PCB layout guidelines in the application note AN-03, which includes using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines for clock signals.
  • The AX7MBF4-945.0000T requires a bias voltage of 3.3V ± 0.3V. Ensure that the power supply is stable and within the recommended range. Also, make sure to decouple the power supply with a 10uF capacitor to reduce noise and ensure proper biasing.
  • The AX7MBF4-945.0000T is rated for operation from -40°C to +85°C. However, it's recommended to derate the frequency tolerance by ±5 ppm/°C for temperatures above 70°C.
  • The AX7MBF4-945.0000T is designed to meet the requirements of MIL-STD-883, Method 2007.1 for vibration. However, it's recommended to consult with Abracon's application engineers to ensure the oscillator meets the specific vibration requirements of your application.
  • Abracon recommends following the JEDEC J-STD-020D.1 standard for soldering. The recommended soldering profile is 260°C ± 5°C for 10-30 seconds, with a peak temperature of 240°C ± 5°C.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AX7MBF4-945.0000T Overview

Use the download button to access the AX7MBF4-945.0000T schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX7MB, or try a keyword search, such as XO
