Abracon recommends following the recommended PCB layout guidelines in the datasheet, including using a solid ground plane, minimizing trace lengths, and using 50-ohm transmission lines to ensure optimal performance and minimize signal degradation.
The AX7MCF3-156.2500C is rated for operation up to 85°C, but Abracon recommends derating the frequency and power handling at higher temperatures. Consult the datasheet for specific derating guidelines and consider using a thermally-enhanced package or heat sink for high-temperature applications.
Follow the recommended soldering profile in the datasheet, using a peak temperature of 260°C and a dwell time of 10-30 seconds. Ensure the PCB is clean and free of oxidation, and use a solder with a melting point above 217°C. Avoid applying excessive force or vibration during soldering.
Lead time and MOQ may vary depending on the region and distributor. Typically, the lead time is 4-6 weeks, and the MOQ is 1000 pieces. Contact Abracon or an authorized distributor for specific lead time and MOQ information.
Yes, the AX7MCF3-156.2500C is RoHS and REACH compliant, meeting the requirements of the European Union's Restriction of Hazardous Substances (RoHS) and Registration, Evaluation, Authorization, and Restriction of Chemicals (REACH) directives.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
AX7MCF3-156.2500C Overview

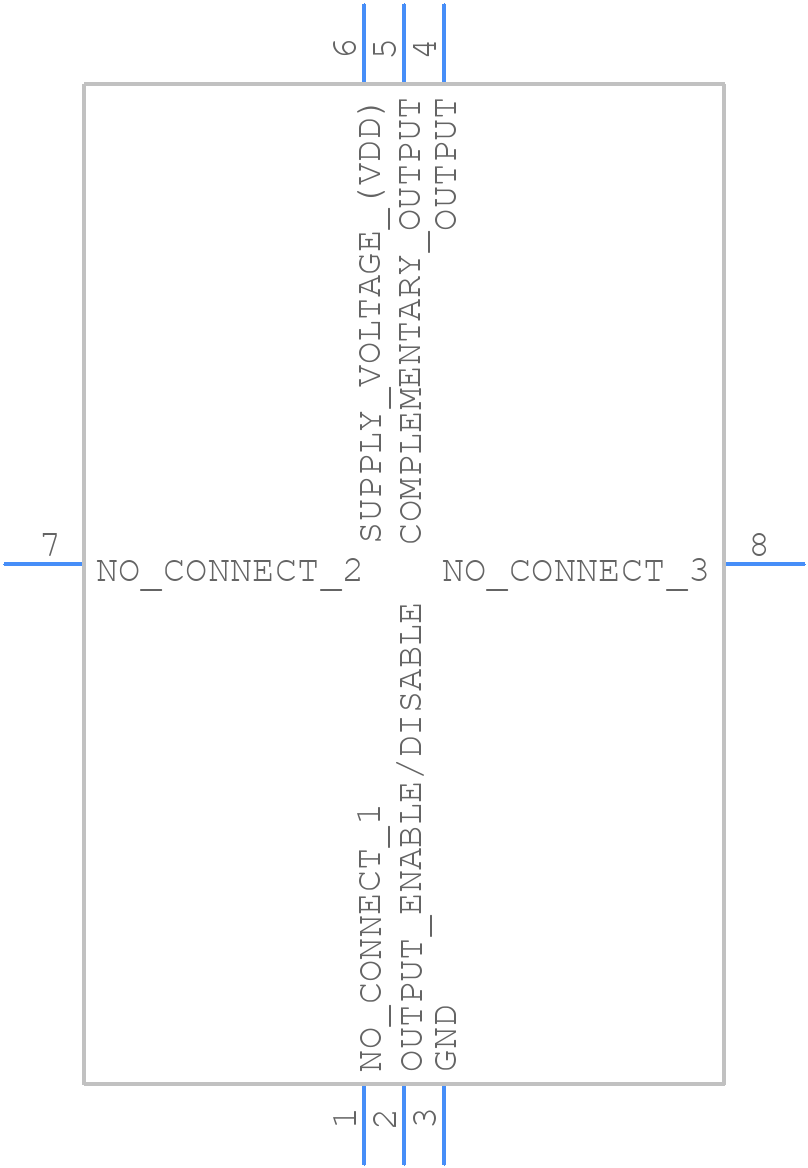

Use the download button to access the AX7MCF3-156.2500C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX7MC,
or try a keyword search, such as XO
