AX7PAF3-125.0000C - ABRACON

Description: Crystal 22.1184MHz ±20ppm (Tol) ±20ppm (Stability) 18pF FUND 40Ohm 4-Pin CSMD

Download AX7PAF3-125.0000C Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

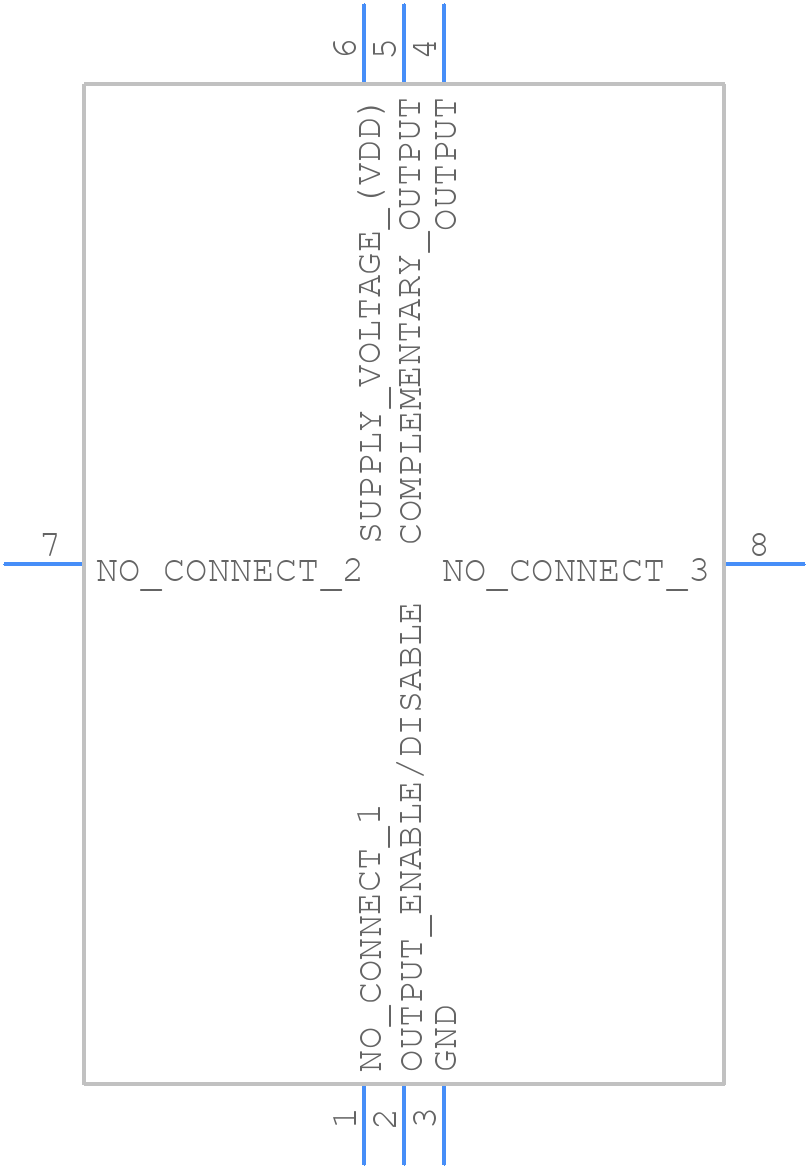

AX7PAF3-125.0000C - ABRACON - PCB symbol
click to zoom
PCB Footprints
AX7PAF3-125.0000C - ABRACON PCB footprint - Other - Other - AX7
click to zoom
3D Models
AX7PAF3-125.0000C - ABRACON - 3D model - Other - AX7
click to zoom

AX7PAF3-125.0000C Details

  • Manufacturer Part Number:

    AX7PAF3-125.0000C

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Manufacturer:

    Abracon Corporation

  • YTEOL:

    0

  • Additional Feature:

    ENABLE/DISABLE FUNCTION; COMPLEMENTARY OUTPUT; TAPE

  • Fall Time-Max:

    0.35 ns

  • Frequency Adjustment-Mechanical:

    NO

  • Frequency Stability:

    25%

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Terminals:

    8

  • Operating Frequency-Nom:

    125 MHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Oscillator Type:

    LVPECL

  • Output Load:

    50 OHM

  • Physical Dimension:

    7.0mm x 5.0mm x 1.8mm

  • Rise Time-Max:

    0.35 ns

  • Supply Voltage-Max:

    3.63 V

  • Supply Voltage-Min:

    2.97 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Symmetry-Max:

    55/45 %

AX7PAF3-125.0000C Frequently Asked Questions (FAQs)

  • The operating temperature range of the AX7PAF3-125.0000C is -40°C to +85°C.
  • Yes, the AX7PAF3-125.0000C is designed for high-reliability applications and is built with a ruggedized package to withstand harsh environments.
  • The typical start-up time for the AX7PAF3-125.0000C is around 10ms, but this can vary depending on the specific application and circuit design.
  • Yes, the AX7PAF3-125.0000C is designed to minimize electromagnetic interference (EMI) and is suitable for applications requiring low EMI.
  • The recommended drive level for the AX7PAF3-125.0000C is 1.0 ± 0.5 V, but this can vary depending on the specific application and circuit design.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

AX7PAF3-125.0000C Overview

Use the download button to access the AX7PAF3-125.0000C schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like AX7PA, or try a keyword search, such as XO
