B3221PM3BDGUI-U - Kingston Technology

B3221PM3BDGUI-U Details

• Manufacturer Part Number:

  B3221PM3BDGUI-U

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

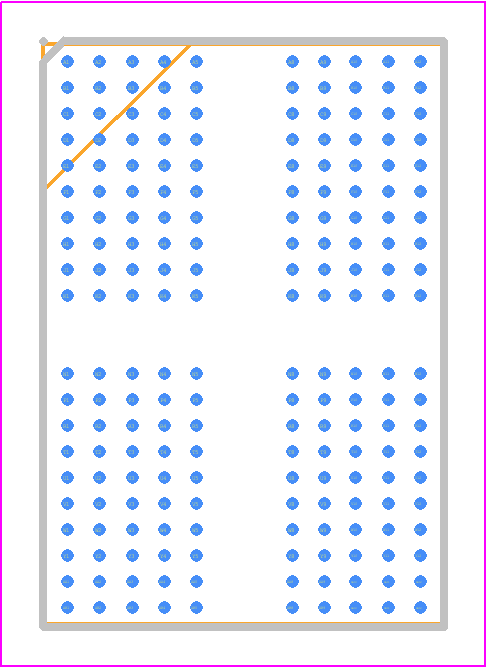

• Package Description:

  FBGA-200

• Reach Compliance Code:

  Compliant

• ECCN Code:

  EAR99

• HTS Code:

  8542.32.00.36

• Manufacturer:

  Kingston Technology Company

• YTEOL:

  5

• Access Mode:

  MULTI BANK PAGE BURST

• Additional Feature:

  AUTO/SELF REFRESH, IT ALSO REQUIRES 1.8V NOMINAL SUPPLY VOLTAGE, TERM PITCH-MAX

• Clock Frequency-Max (fCLK):

  1866 MHz

• I/O Type:

  COMMON

• Interleaved Burst Length:

  16,32

• JESD-30 Code:

  R-PBGA-B200

• Length:

  14.5 mm

• Memory Density:

  34359738368 bit

• Memory IC Type:

  LPDDR4 DRAM

• Memory Width:

  32

• Number of Functions:

  1

• Number of Ports:

  1

• Number of Terminals:

  200

• Number of Words:

  1073741824 words

• Number of Words Code:

  1000000000

• Operating Mode:

  SYNCHRONOUS

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -25 °C

• Organization:

  1GX32

• Output Characteristics:

  3-STATE

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  VFBGA

• Package Equivalence Code:

  BGA200,12X22,32/25

• Package Shape:

  RECTANGULAR

• Package Style:

  GRID ARRAY, VERY THIN PROFILE, FINE PITCH

• Refresh Cycles:

  8192

• Seated Height-Max:

  0.8 mm

• Self Refresh:

  YES

• Sequential Burst Length:

  16,32

• Standby Current-Max:

  0.0062 A

• Supply Current-Max:

  0.205 mA

• Supply Voltage-Max (Vsup):

  1.17 V

• Supply Voltage-Min (Vsup):

  1.06 V

• Supply Voltage-Nom (Vsup):

  1.1 V

• Surface Mount:

  YES

• Technology:

  CMOS

• Terminal Form:

  BALL

• Terminal Pitch:

  0.8 mm

• Terminal Position:

  BOTTOM

• Width:

  10 mm
