The recommended land pattern for B41231A8109M000 can be found in the TDK Corporation's recommended footprint document or in the IPC-7351 standard. It's essential to follow the recommended land pattern to ensure proper soldering and component reliability.
To prevent damage, handle the B41231A8109M000 component by the edges, avoiding touching the electrodes or component body. Use anti-static wrist straps, mats, or packaging to prevent electrostatic discharge (ESD) damage. Follow standard ESD handling procedures to ensure component reliability.
The maximum reflow temperature for B41231A8109M000 is 260°C, as specified in the datasheet. Exceeding this temperature can cause component damage or degradation. Ensure that your reflow soldering process is within the recommended temperature range to prevent damage.
While the B41231A8109M000 is a robust component, it's essential to consider the vibration environment in your application. TDK Corporation recommends following the IEC 60068-2-6 standard for vibration testing. If your application exceeds these standards, consult with TDK Corporation or a qualified engineer to ensure the component's reliability.
Store the B41231A8109M000 components in their original packaging, away from direct sunlight, moisture, and extreme temperatures. Follow the storage conditions specified in the datasheet, and ensure the storage area is clean and dry. This will help maintain the component's shelf life and prevent degradation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B41231A8109M000 Overview

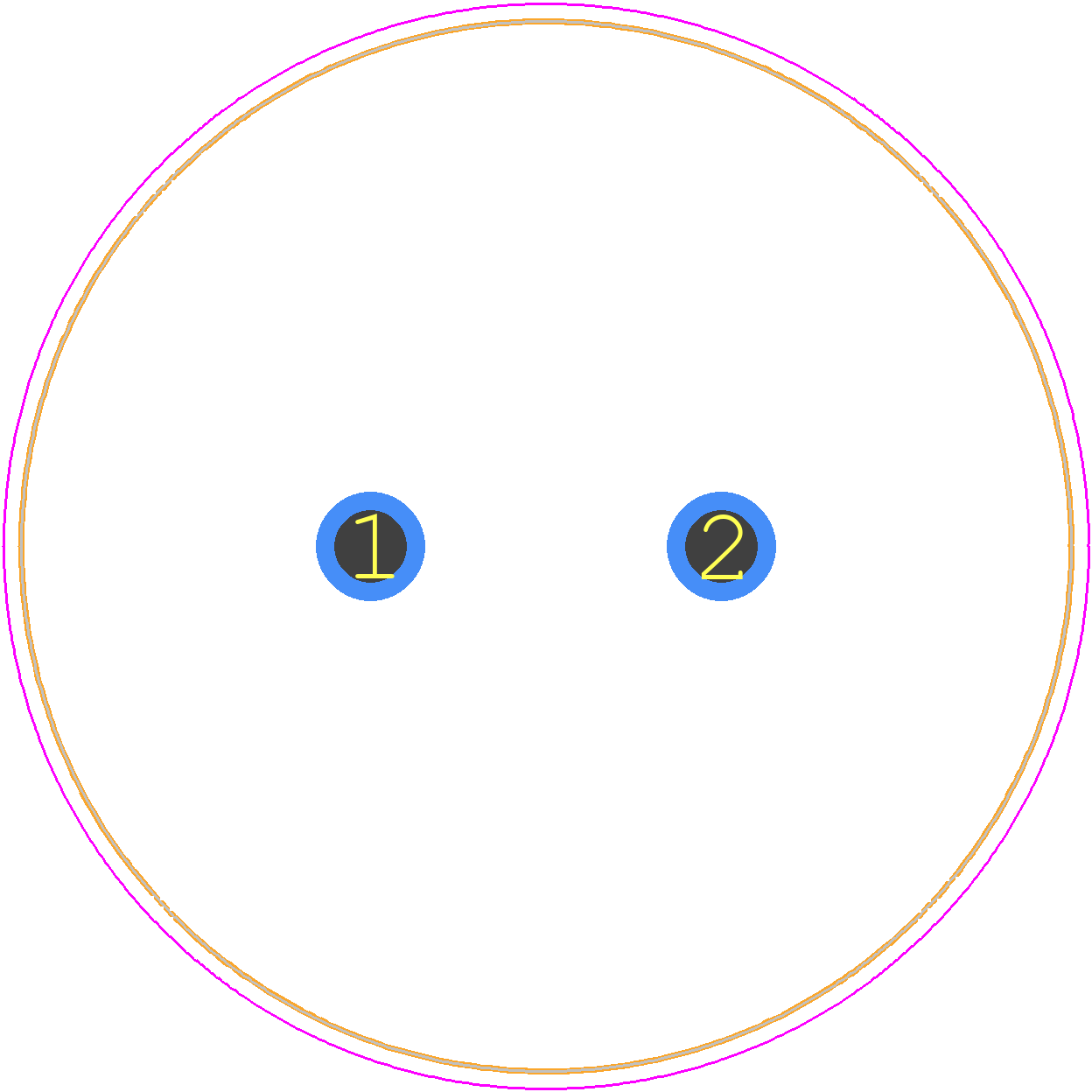

Use the download button to access the B41231A8109M000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B4123,
or try a keyword search, such as Ceramic Capacitors
