B41692A8108Q007 - TDK

Description: Aluminum Electrolytic Capacitors - Leaded 1000UF 63V AL-ELKO AXIAL LEADED

Download B41692A8108Q007 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B41692A8108Q007 - TDK - PCB symbol
click to zoom
PCB Footprints

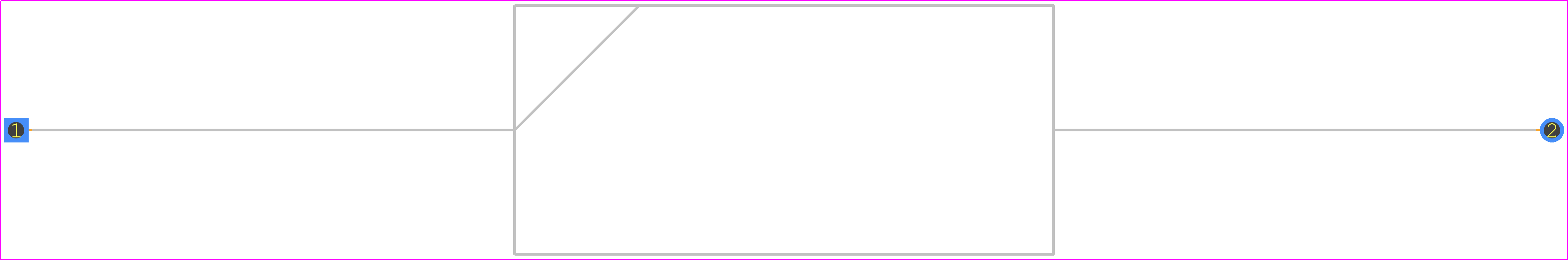

B41692A8108Q007 - TDK PCB footprint - Capacitors, Polarized Axial Diameter Horizontal Mounting - Capacitors, Polarized Axial Diameter Horizontal Mounting - B41692A8108Q007
click to zoom
3D Models
B41692A8108Q007 - TDK - 3D model - Capacitors, Polarized Axial Diameter Horizontal Mounting - B41692A8108Q007
click to zoom
  • Datasheet Download Datasheet
  • Stock & Prices $ Price & Stock for B41692A8108Q007
  • Part Number B41692A8108Q007
  • Manufacturer TDK
  • Pin Count 2
  • Part Category Capacitor
  • Package Category Capacitors, Polarized Axial Diameter Horizontal Mounting
  • Footprint Name Capacitors, Polarized Axial Diameter Horizontal Mounting - B41692A8108Q007
  • Released Date May 18, 2017
  • Last Modified Date Mar 7, 2023 4:10 PM UTC
  • Pinout / Pin List Click Here (Member Only)

B41692A8108Q007 Details

  • Manufacturer Part Number:

    B41692A8108Q007

  • Rohs Code:

    No

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.20

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Additional Feature:

    STANDARD: IEC60384-4

  • Capacitance:

    1000 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    18 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    78 mΩ

  • JESD-609 Code:

    e3

  • Leakage Current:

    0.382 mA

  • Length:

    39 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Shape:

    TUBULAR PACKAGE

  • Package Style:

    Axial

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    30%

  • Rated (DC) Voltage (URdc):

    63 V

  • Ripple Current:

    5700 mA

  • Surface Mount:

    NO

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Shape:

    WIRE

B41692A8108Q007 Frequently Asked Questions (FAQs)

  • The recommended land pattern for B41692A8108Q007 can be found in the TDK Corporation's recommended footprint document or by contacting TDK's technical support. The land pattern should ensure a secure and reliable connection to the PCB.
  • While the datasheet specifies an operating temperature range of -40°C to +125°C, it's essential to consider the specific application's temperature profile and potential thermal stresses. Consult with TDK's technical support or application notes for guidance on high-temperature applications.
  • B41692A8108Q007 is a moisture-sensitive device. Follow the recommended storage and handling procedures outlined in the datasheet or TDK's application notes to prevent moisture-related damage.
  • The recommended soldering profile can be found in the datasheet or TDK's application notes. A typical reflow soldering profile includes a peak temperature of 260°C, with a dwell time of 20-30 seconds above 220°C.
  • While the component is designed to operate in a variety of environments, it's crucial to consider the specific application's conditions. Consult with TDK's technical support or application notes for guidance on using B41692A8108Q007 in humid or corrosive environments.
