B41790A7528Q001 - TDK

Description: Axial-lead/Soldering Star Capacitors, 5200μF/35VDC, 21mm dia x 39mm length

Download B41790A7528Q001 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B41790A7528Q001 - TDK - PCB symbol
click to zoom
PCB Footprints

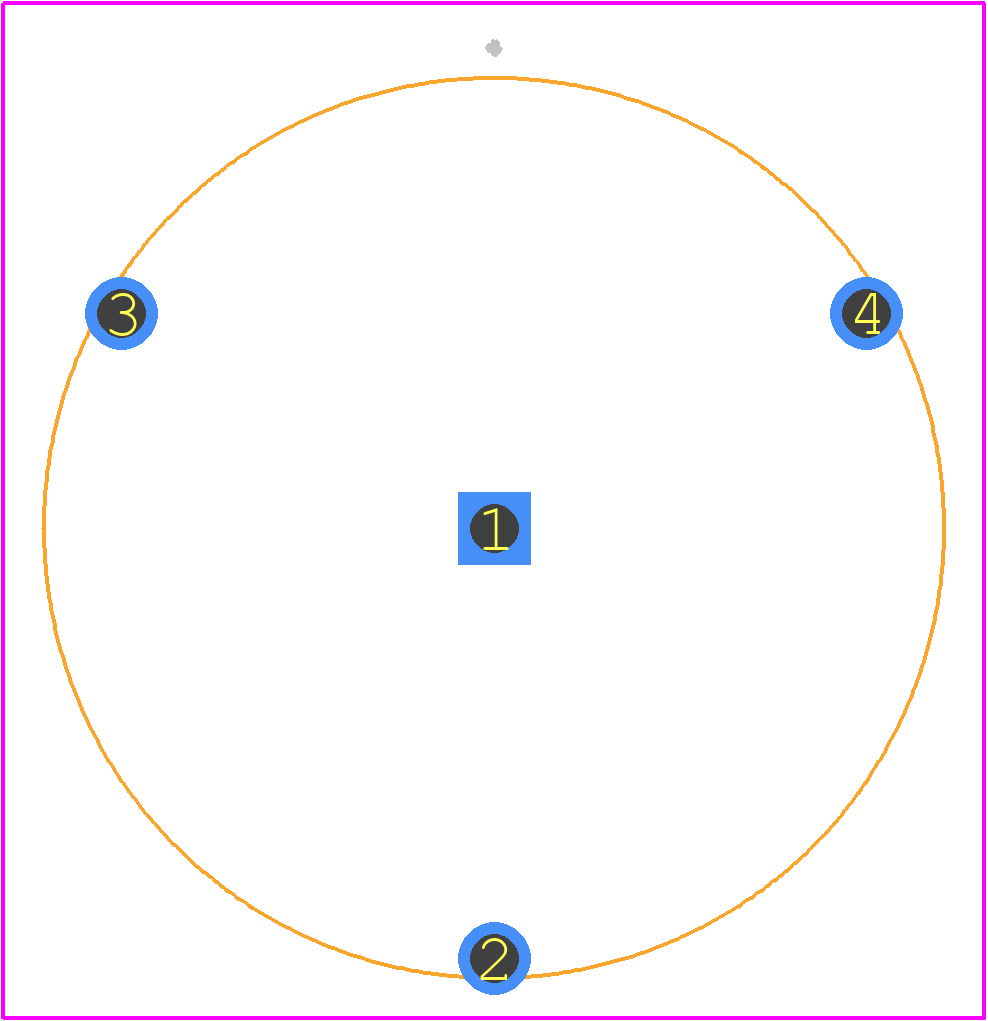

B41790A7528Q001 - TDK PCB footprint - Other - Other - B41790 (21 x 39)
click to zoom
3D Models
B41790A7528Q001 - TDK - 3D model - Other - B41790 (21 x 39)
click to zoom

B41790A7528Q001 Details

  • Manufacturer Part Number:

    B41790A7528Q001

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    7

  • Capacitance:

    5200 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    21 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    27 mΩ

  • Leakage Current:

    10.924 mA

  • Length:

    39 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    10%

  • Number of Terminals:

    4

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Style:

    RADIAL CROWN

  • Packing Method:

    BULK

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    30%

  • Rated (DC) Voltage (URdc):

    35 V

  • Ripple Current:

    7200 mA

  • Surface Mount:

    NO

  • Terminal Shape:

    BINDING POST; WIRE

B41790A7528Q001 Frequently Asked Questions (FAQs)

  • TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for 10-30 seconds, with a ramp-up rate of 3°C/s (5.4°F/s) and a ramp-down rate of 6°C/s (10.8°F/s).
  • Yes, the B41790A7528Q001 is designed for high-frequency applications, with a self-resonant frequency of 10 MHz and a low equivalent series resistance (ESR) of 0.05 Ω.
  • The B41790A7528Q001 has a moisture sensitivity level (MSL) of 2, which means it can withstand normal humidity levels. However, it's recommended to follow TDK's guidelines for moisture protection and reflow soldering to prevent damage.
  • TDK recommends a voltage derating of 80% for the B41790A7528Q001, meaning the maximum operating voltage should not exceed 80% of the rated voltage (28 V) to ensure long-term reliability.
  • Yes, the B41790A7528Q001 is compliant with the European Union's RoHS (Restriction of Hazardous Substances) and REACH (Registration, Evaluation, Authorization, and Restriction of Chemicals) regulations, making it suitable for use in environmentally friendly designs.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

B41790A7528Q001 Overview

Use the download button to access the B41790A7528Q001 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B4179, or try a keyword search, such as Aluminum Electrolytic Capacitors

About TDK

TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
