B43541B8476M000 - TDK

Description: EPCOS - B43541B8476M000 - CAP, 47µF, 600V, ALU ELEC, SNAP-IN

Download B43541B8476M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B43541B8476M000 - TDK - PCB symbol
click to zoom
PCB Footprints

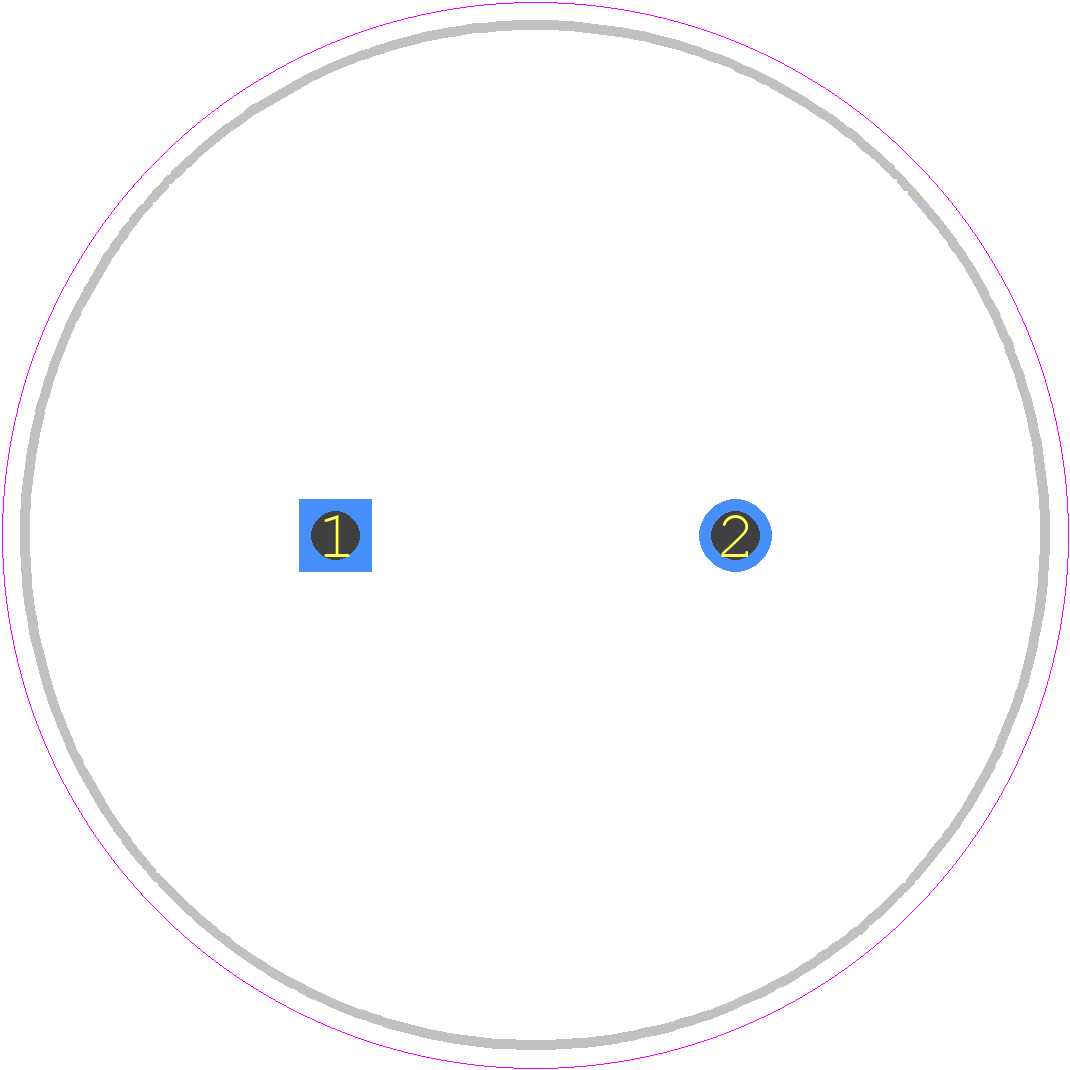

B43541B8476M000 - TDK PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - B43541B8476M(25x25)
click to zoom
3D Models
B43541B8476M000 - TDK - 3D model - Capacitor, Polarized Radial Diameter - B43541B8476M(25x25)
click to zoom

B43541B8476M000 Details

  • Manufacturer Part Number:

    B43541B8476M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Capacitance:

    47 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    25 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    2470 mΩ

  • Leakage Current:

    0.565 mA

  • Length:

    25 mm

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    CARDBOARD

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    600 V

  • Ripple Current:

    600 mA

  • Surface Mount:

    NO

  • Tan Delta:

    0.2

  • Terminal Pitch:

    10 mm

  • Terminal Shape:

    SNAP-IN

B43541B8476M000 Frequently Asked Questions (FAQs)

  • TDK recommends a soldering temperature profile with a peak temperature of 260°C for a maximum of 10 seconds, and a minimum of 3°C/s temperature gradient.
  • Yes, the B43541B8476M000 is designed to withstand high vibrations and meets the IEC 60068-2-6 standard for vibration resistance.
  • The ESR of the B43541B8476M000 is approximately 10 mohm at 100 kHz, but this value can vary depending on the frequency and temperature.
  • Yes, the B43541B8476M000 meets the AEC-Q200 standard for automotive components and is suitable for use in automotive applications.
  • The B43541B8476M000 has an MSL rating of 2, which means it can be exposed to a maximum of 30°C and 60% relative humidity for 24 hours before soldering.
