B43547A5477M000 - TDK

Description: Aluminum Electrolytic Capacitors - Snap In 450VDC 470uF 20% PVC STD 6.3mm Term

Download B43547A5477M000 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
B43547A5477M000 - TDK - PCB symbol
click to zoom
PCB Footprints

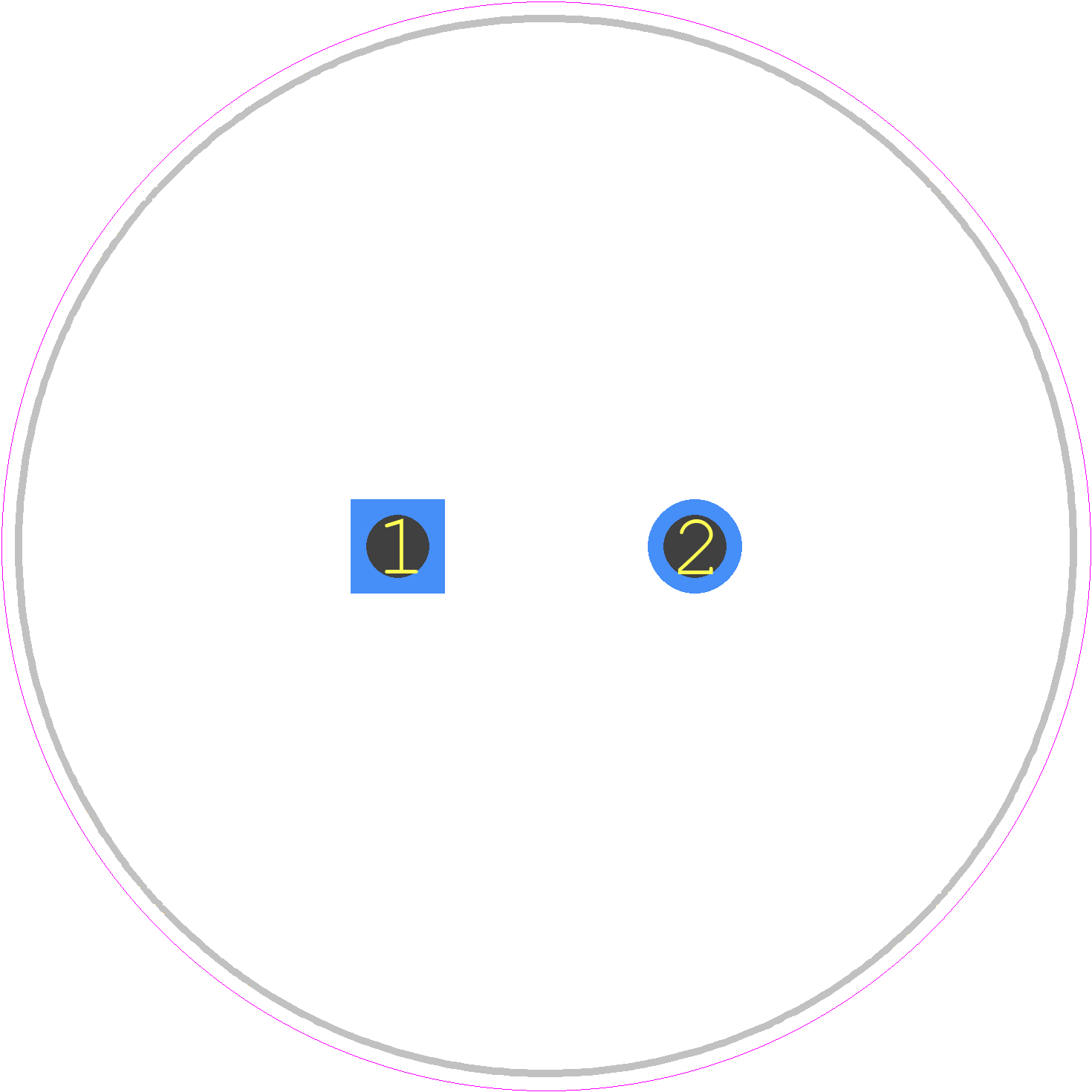

B43547A5477M000 - TDK PCB footprint - Capacitor, Polarized Radial Diameter - Capacitor, Polarized Radial Diameter - 35*50-
click to zoom
3D Models
B43547A5477M000 - TDK - 3D model - Capacitor, Polarized Radial Diameter - 35*50-
click to zoom

B43547A5477M000 Details

  • Manufacturer Part Number:

    B43547A5477M000

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8532.22.00.40

  • Factory Lead Time:

    24 Weeks

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    6

  • Capacitance:

    470 µF

  • Capacitor Type:

    ALUMINUM ELECTROLYTIC CAPACITOR

  • Diameter:

    35 mm

  • Dielectric Material:

    ALUMINUM (WET)

  • ESR:

    45 mΩ

  • Length:

    50 mm

  • Negative Tolerance:

    20%

  • Number of Terminals:

    2

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -25 °C

  • Package Style:

    Snap-in

  • Packing Method:

    Cardboard

  • Polarity:

    POLARIZED

  • Positive Tolerance:

    20%

  • Rated (DC) Voltage (URdc):

    450 V

  • Ripple Current:

    6570 mA

  • Terminal Pitch:

    10 mm

B43547A5477M000 Frequently Asked Questions (FAQs)

  • TDK recommends a soldering temperature profile with a peak temperature of 260°C (500°F) for a maximum of 10 seconds, and a minimum of 3°C/s (5.4°F/s) cooling rate to prevent thermal shock.
  • Yes, the B43547A5477M000 is designed to withstand high vibrations. TDK's X7R dielectric material and internal construction ensure stable capacitance and low ESR even under severe vibration conditions.
  • The B43547A5477M000 is designed to be moisture-resistant, with a moisture sensitivity level (MSL) of 2a, which means it can withstand 24 hours of exposure to 30°C (86°F) and 60% relative humidity without significant degradation.
  • The maximum allowed DC bias voltage for B43547A5477M000 is 50V, which is the rated voltage of the capacitor. Exceeding this voltage may lead to reduced capacitance, increased ESR, or even capacitor failure.
  • The B43547A5477M000 is rated for operation up to 125°C (257°F), but its capacitance and ESR may degrade at higher temperatures. Consult TDK's application notes for specific guidance on high-temperature applications.
