TDK recommends a soldering temperature of 260°C (500°F) with a maximum soldering time of 5 seconds. However, it's essential to follow the soldering profile recommended by the manufacturer to ensure the capacitor's reliability and performance.
The B43630A5108M000 is designed to withstand moderate vibrations. However, for high-vibration environments, TDK recommends using capacitors with specialized vibration-resistant designs, such as their 'Vibration-Resistant' or 'High-Reliability' series. Consult with TDK or a qualified engineer to determine the best capacitor for your specific application.
TDK capacitors, including the B43630A5108M000, are designed to meet the requirements of IEC 60384-4-1. According to this standard, the capacitor's capacitance, dissipation factor, and insulation resistance are guaranteed to remain within specified limits over time and with aging. However, it's essential to follow proper storage, handling, and operating conditions to ensure the capacitor's performance and reliability.
The B43630A5108M000 is rated for operation up to 125°C. While it may be possible to use it in higher temperature environments, TDK does not recommend exceeding the rated temperature range. Using the capacitor above 125°C may lead to reduced performance, reliability issues, or even failure. Consult with TDK or a qualified engineer to determine the best capacitor for your specific high-temperature application.
TDK recommends derating the capacitor's voltage rating by 1.5 kV per 1,000 meters (3,300 feet) above sea level. For example, at an altitude of 3,000 meters (10,000 feet), the capacitor's voltage rating would be derated by 4.5 kV. Consult with TDK or a qualified engineer to determine the appropriate derating for your specific high-altitude application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
B43630A5108M000 Overview

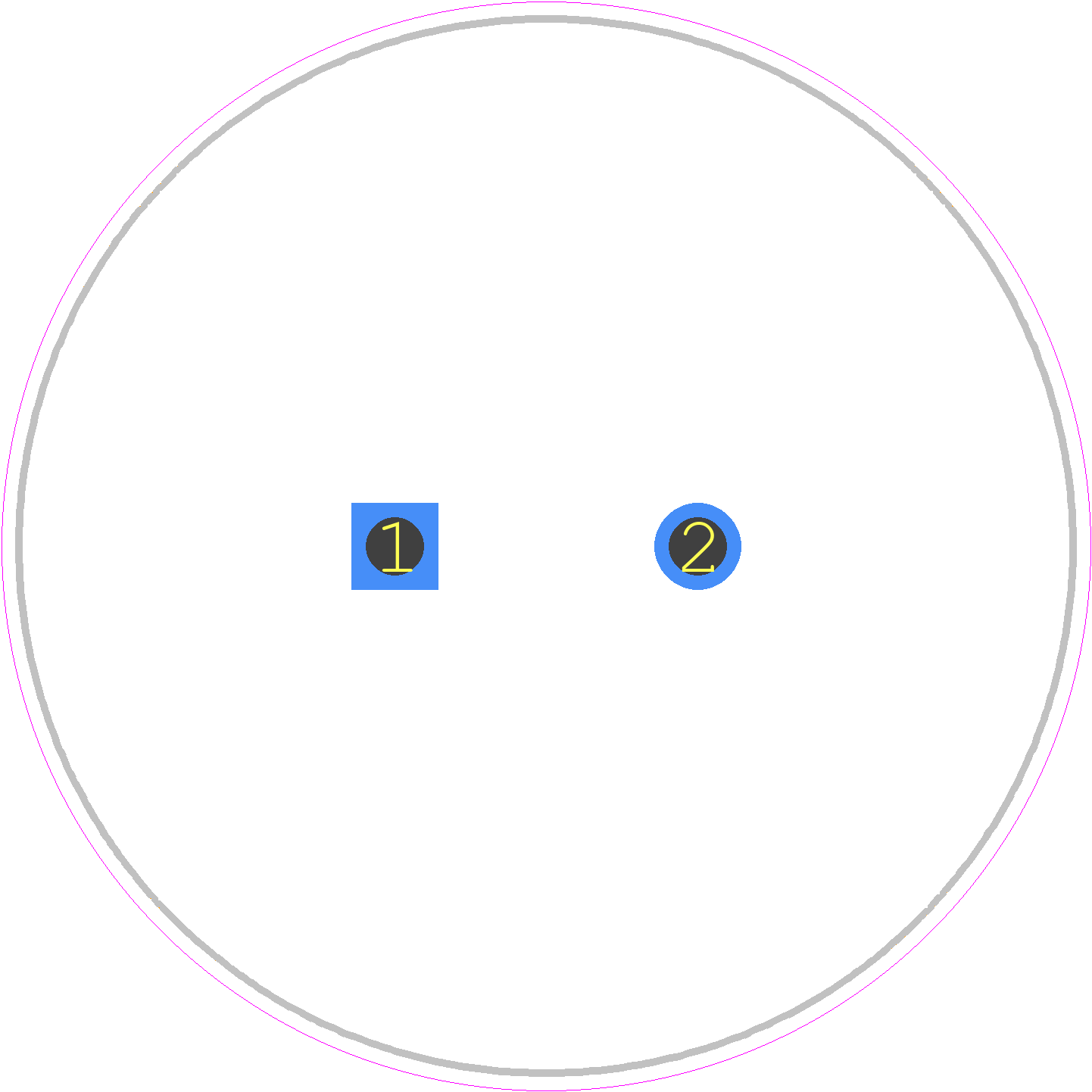

Use the download button to access the B43630A5108M000 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like B4363,
or try a keyword search, such as Aluminum Electrolytic Capacitors
About TDK
TDK-Lambda is a global supplier of power supplies and related products. It is a subsidiary of TDK Corporation, a leading electronics company based in Japan. TDK-Lambda specializes in designing and manufacturing a wide range of AC-DC power supplies, DC-DC converters, programmable power supplies, and EMC/EMI filters for various industries and applications.
