B72225T4301K101 - TDK

Description: ThermoFuse Varistors, Max. Operating voltage [AC]=300Vrms, Max. Surge Current Imax(8/20μs,1time)=20kA

Download B72225T4301K101 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

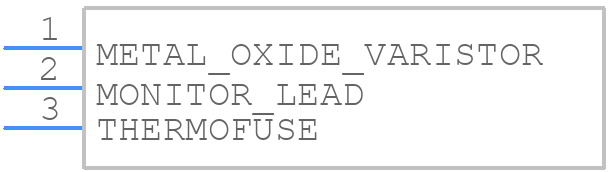

B72225T4301K101 - TDK - PCB symbol
click to zoom
PCB Footprints
B72225T4301K101 - TDK PCB footprint - Other - Other - B72225T4301K101-3
click to zoom
3D Models
B72225T4301K101 - TDK - 3D model - Other - B72225T4301K101-3
click to zoom

B72225T4301K101 Details

  • Manufacturer Part Number:

    B72225T4301K101

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Package Description:

    RADIAL LEADED

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8533.40.40.00

  • Manufacturer:

    TDK Corporation

  • YTEOL:

    0

  • Circuit RMS Voltage-Max:

    300 V

  • Energy Absorbing Capacity-Max:

    410 J

  • JESD-609 Code:

    e3

  • Mounting Feature:

    THROUGH HOLE MOUNT

  • Number of Terminals:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Height:

    35.2 mm

  • Package Length:

    30.2 mm

  • Package Shape:

    RECTANGULAR PACKAGE

  • Package Style:

    SIP

  • Package Width:

    11.2 mm

  • Packing Method:

    BULK

  • Rated Power Dissipation (P):

    1 W

  • Rated Temperature:

    85 °C

  • Reference Standard:

    IEC; UL; VDE

  • Resistor Type:

    VARISTOR

  • Surface Mount:

    NO

  • Technology:

    METAL OXIDE FILM

  • Terminal Finish:

    TIN

  • Terminal Placement:

    RADIAL

  • Terminal Shape:

    WIRE

  • Working Voltage:

    385 V
