BA56-11EWA footprint, schematic symbol and 3D model by Kingbright

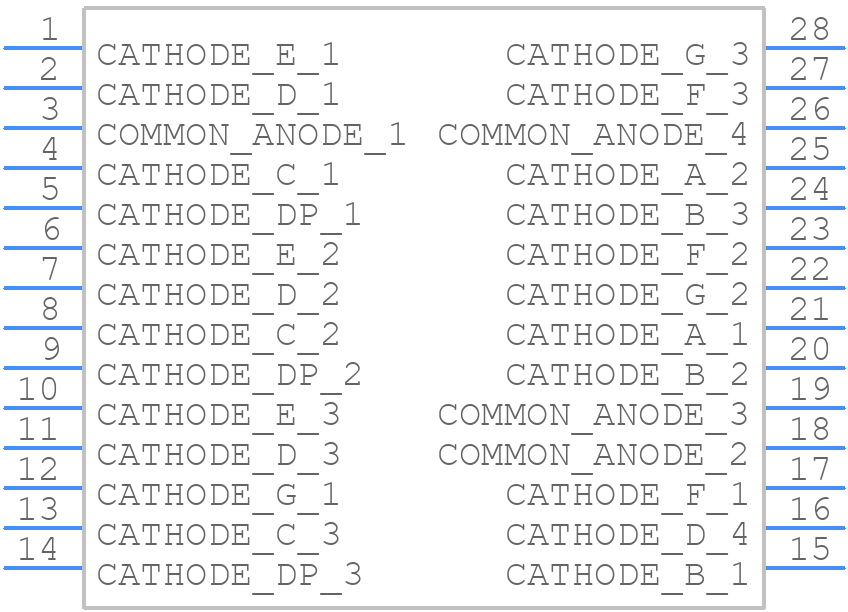

Symbol

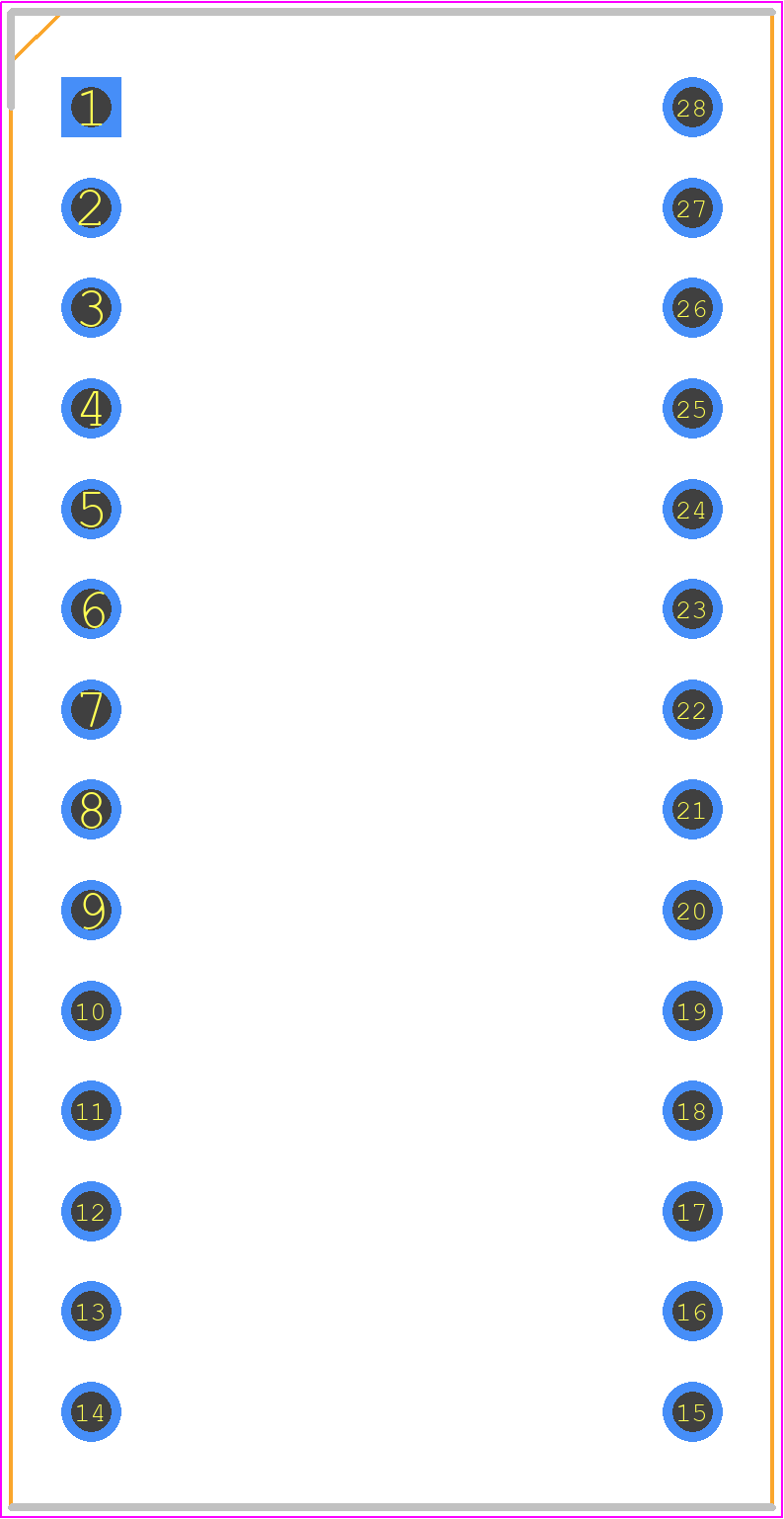

PCB Footprints

3D Models

BA56-11EWA Details

The recommended storage temperature for BA56-11EWA is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
While BA56-11EWA is not specifically designed for outdoor use, it can be used in outdoor applications if properly protected from moisture and extreme temperatures. However, it's recommended to use a suitable enclosure and apply a conformal coating to ensure reliability.
The maximum soldering temperature for BA56-11EWA is 260°C (500°F) for a maximum of 3 seconds. Exceeding this temperature or time may damage the LED.
To prevent ESD damage, handle BA56-11EWA with an anti-static wrist strap or mat, and ensure that all equipment and tools are properly grounded. Avoid touching the LED pins or handling the device in a way that may generate static electricity.
The typical lifespan of BA56-11EWA is 50,000 hours or more, depending on operating conditions and usage. However, the LED's brightness may degrade over time, and its color temperature may shift slightly.

Expert Contribution

System Verified

Community Approved

Use the download button to access the BA56-11EWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like BA56-, or try a keyword search, such as LED Displays
