BA56-11GWA - Kingbright

Description: LED Displays & Accessories GREEN DIFFUSED 3 DIGIT

Download BA56-11GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

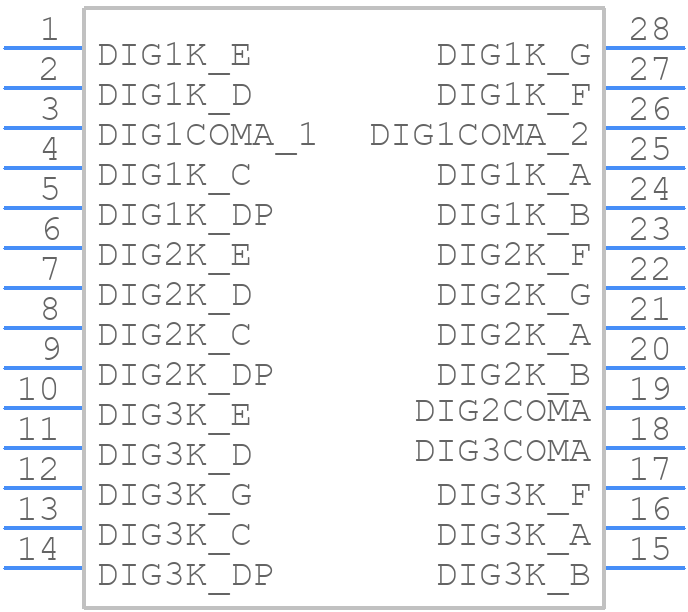

BA56-11GWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

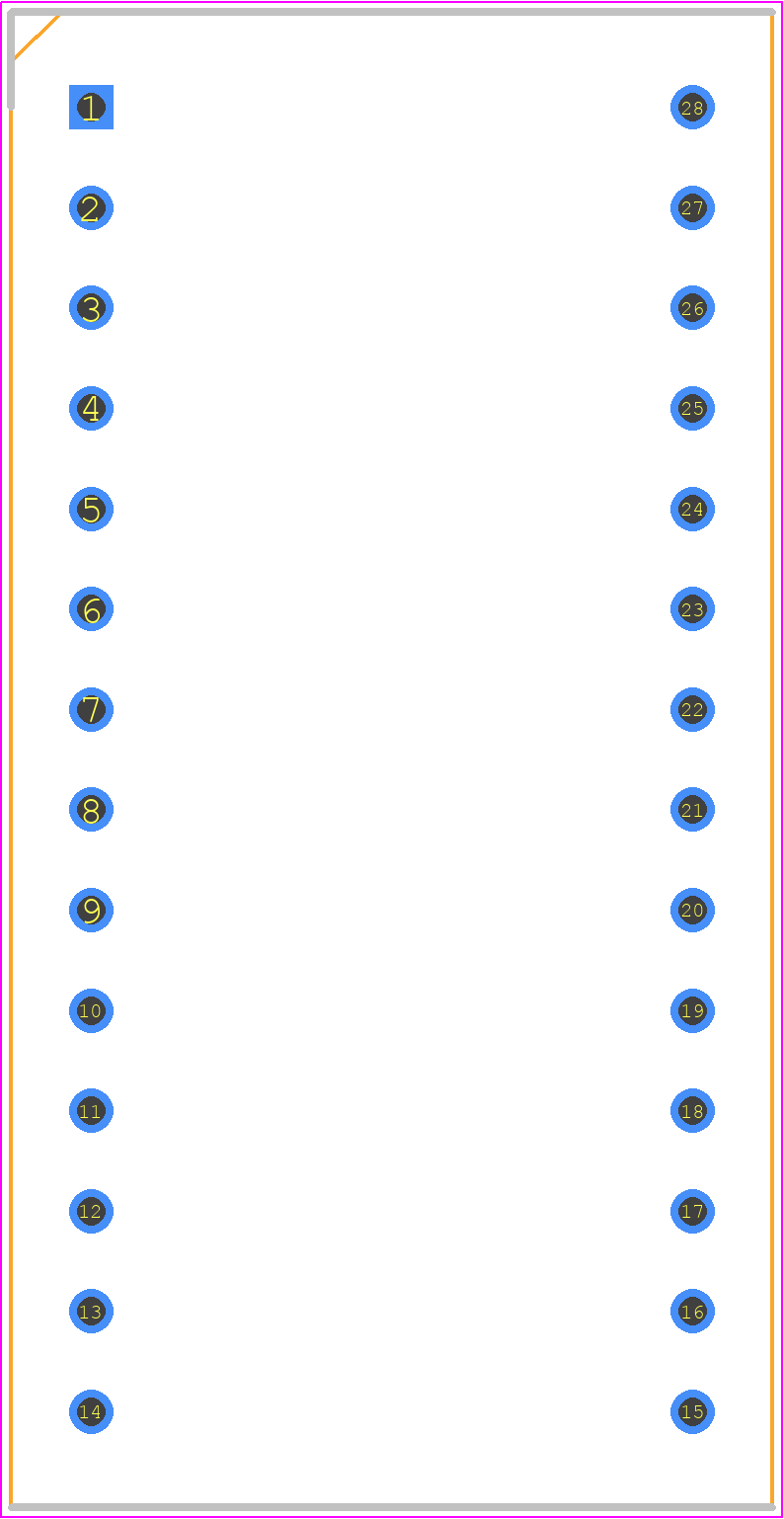

BA56-11GWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - DIP28_2021
click to zoom
3D Models
BA56-11GWA - Kingbright - 3D model - Dual-In-Line Sockets - DIP28_2021
click to zoom

BA56-11GWA Details

  • Manufacturer Part Number:

    BA56-11GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-28

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON ANODE, 3 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    3

  • Number of Functions:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    565 nm

BA56-11GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for BA56-11GWA is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
  • Yes, BA56-11GWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
  • The maximum forward current for BA56-11GWA is 30mA, but it's recommended to operate at a lower current (e.g., 20mA) for longer lifespan and reliability.
  • Yes, BA56-11GWA is compatible with lead-free soldering, but the recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds.
  • The typical viewing angle for BA56-11GWA is 120°, but this can vary depending on the specific application and optical design.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BA56-11GWA Overview

Use the download button to access the BA56-11GWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BA56-, or try a keyword search, such as LED Displays
