BA56-11SRWA - Kingbright

Description: LED Displays & Accessories Tri Red 640nm Common Anode

Download BA56-11SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

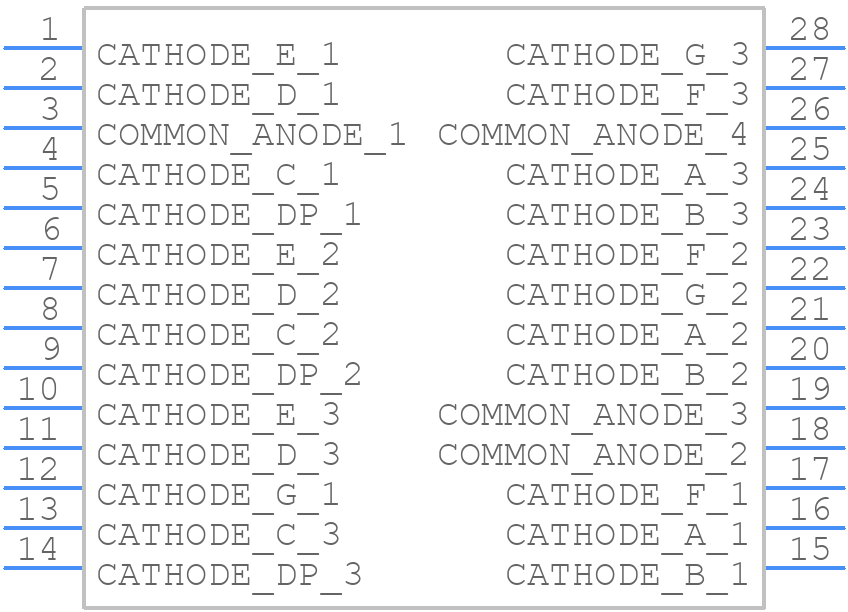

BA56-11SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

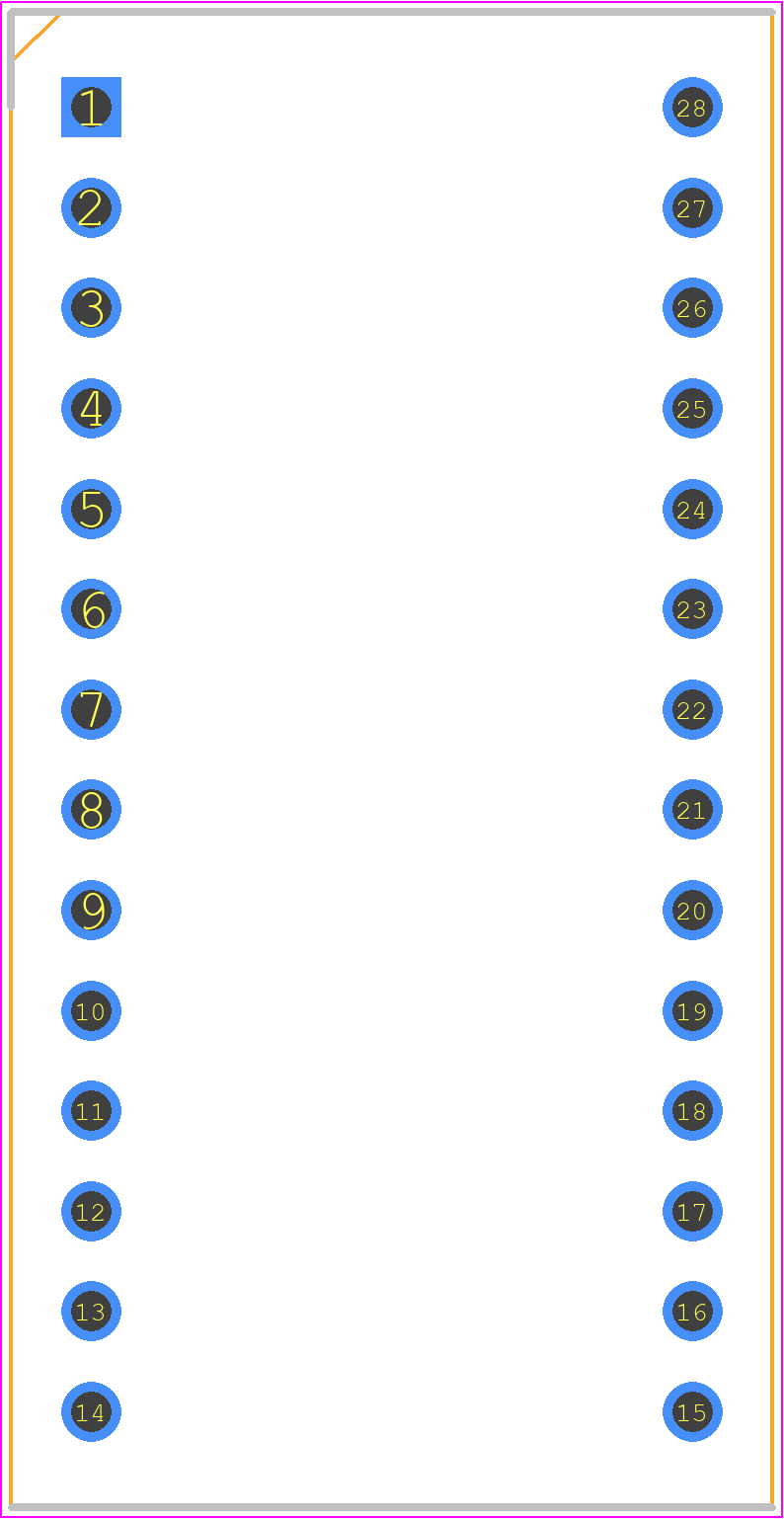

BA56-11SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 14.22mm Three Digit Numeric Display_1
click to zoom
3D Models
BA56-11SRWA - Kingbright - 3D model - Dual-In-Line Sockets - 14.22mm Three Digit Numeric Display_1
click to zoom

BA56-11SRWA Details

  • Manufacturer Part Number:

    BA56-11SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-28

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0.4

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, 3 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    3

  • Number of Functions:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

BA56-11SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for BA56-11SRWA is -20°C to 30°C (-4°F to 86°F) to prevent damage to the LED.
  • Yes, BA56-11SRWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
  • The maximum forward current for BA56-11SRWA is 30mA, but it's recommended to operate at a lower current (e.g., 20mA) for longer lifespan and reliability.
  • Yes, BA56-11SRWA is compatible with lead-free soldering, but the recommended soldering temperature is 260°C (500°F) for a maximum of 3 seconds.
  • The typical viewing angle for BA56-11SRWA is 120°, but this can vary depending on the specific application and optical design.
