BA56-12EWA - Kingbright

Description: Display Modules - LED Character and Numeric Red 7-Segment 3 Character Common Anode 2V 20mA 1.480" H x 0.748" W x 0.319" D (37.60mm x 19.00mm x 8.10mm) 12-DIP (0.600", 15.24mm)

Download BA56-12EWA Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this BA56-12EWA model

Email notifications will be applied after download.

Send part feedback

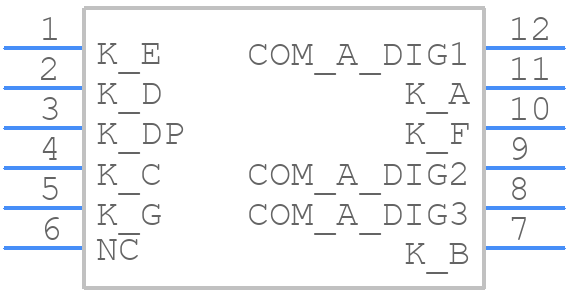

Symbol

BA56-12EWA - Kingbright - PCB symbol

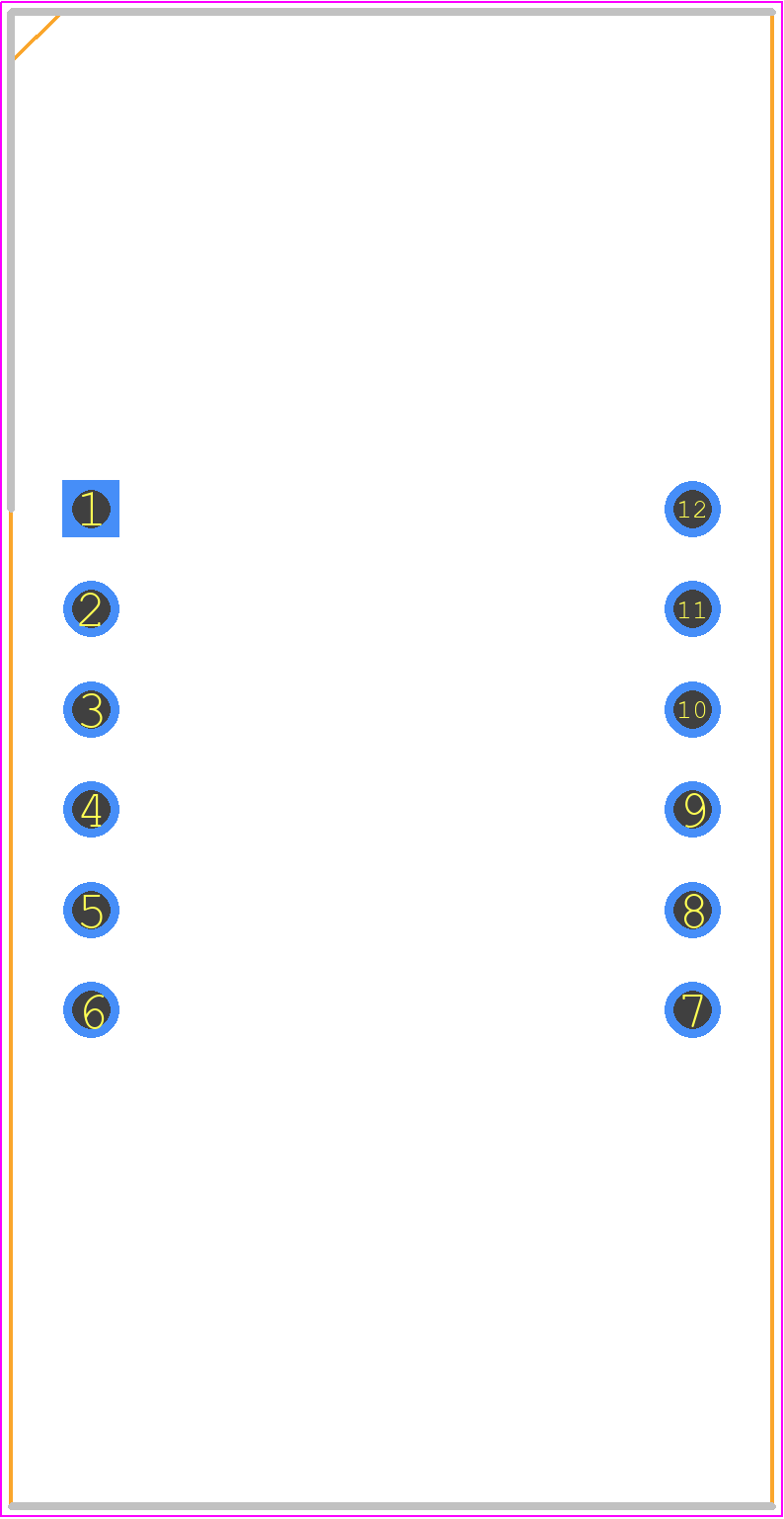

PCB Footprints

BA56-12EWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 12-Pin DIP

3D Models

BA56-12EWA - Kingbright - 3D model - Dual-In-Line Sockets - 12-Pin DIP

Datasheet Download Datasheet
Stock & Prices Price & Stock for BA56-12EWA
Part Number BA56-12EWA
Manufacturer Kingbright
Pin Count 12
Part Category Display
Package Category Dual-In-Line Sockets
Footprint Name Dual-In-Line Sockets - 12-Pin DIP
Released Date Mar 16, 2024
Last Modified Date Sep 24, 2025 5:39 AM UTC
Pinout / Pin List Click Here (Member Only)

BA56-12EWA Details

Manufacturer Part Number:
BA56-12EWA
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Transferred
Package Description:
ROHS COMPLIANT PACKAGE-12
Country Of Origin:
Mainland China
HTS Code:
8541.40.20.00
Manufacturer:
Kingbright
YTEOL:
6
Additional Feature:
IC COMPATIBLE
Color:
HIGH EFFICIENCY RED
Color@Wavelength:
Orange
Configuration:
COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT
Display Height:
14.2 mm
Forward Current-Max:
0.03 A
Forward Voltage-Max:
2.5 V
Number of Characters:
3
Number of Functions:
3
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Optoelectronic Device Type:
7 SEG NUMERIC LED DISPLAY
Peak Wavelength:
625 nm

BA56-12EWA Frequently Asked Questions (FAQs)

The recommended storage temperature for BA56-12EWA is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
Yes, BA56-12EWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
The maximum soldering temperature for BA56-12EWA is 260°C (500°F) for 3 seconds or less.
Yes, BA56-12EWA is compatible with lead-free soldering, but the soldering temperature and time should be carefully controlled to avoid damaging the LED.
The typical viewing angle for BA56-12EWA is 120°, but this can vary depending on the specific application and optical design.

Trust Checks

Community Provided

System Verified

Community Approved

BA56-12EWA Overview

Use the download button to access the BA56-12EWA schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like BA56-, or try a keyword search, such as LED Displays
