BA56-12SRWA - Kingbright

Description: LED Displays & Accessories RED DIFFUSED 3 DIGIT

Download BA56-12SRWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

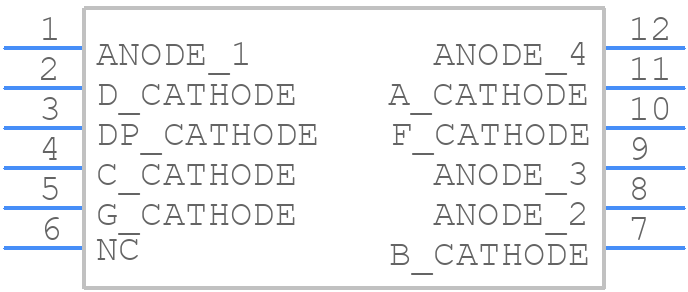

BA56-12SRWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

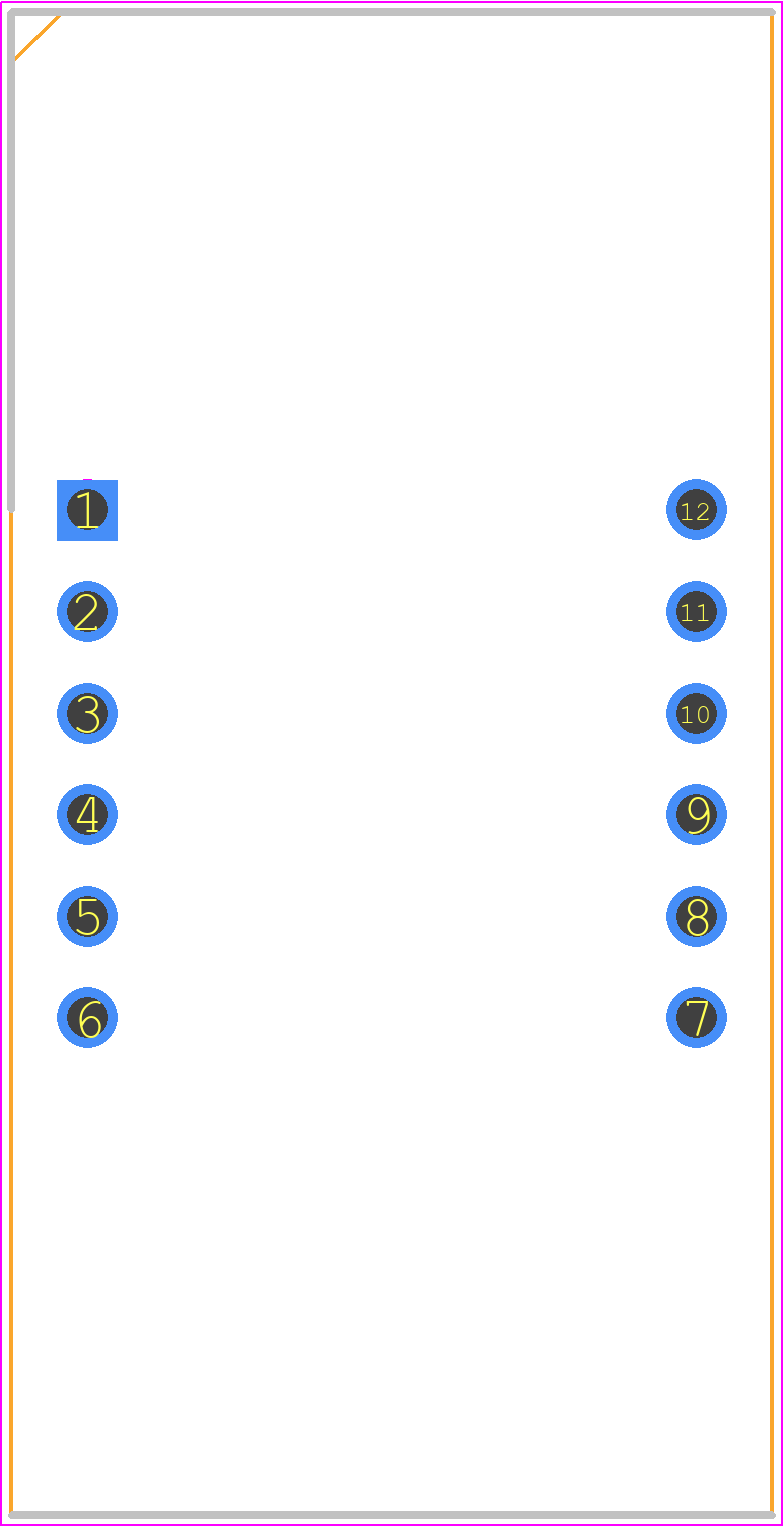

BA56-12SRWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 12p-dip-37.6x19
click to zoom
3D Models
BA56-12SRWA - Kingbright - 3D model - Dual-In-Line Sockets - 12p-dip-37.6x19
click to zoom

BA56-12SRWA Details

  • Manufacturer Part Number:

    BA56-12SRWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    End Of Life

  • Package Description:

    ROHS COMPLIANT PACKAGE-12

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    0.4

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    SUPER BRIGHT RED

  • Color@Wavelength:

    Red

  • Configuration:

    COMMON ANODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.22 mm

  • Forward Current-Max:

    0.03 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    3

  • Number of Functions:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    660 nm

BA56-12SRWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for BA56-12SRWA is -30°C to 60°C.
  • Yes, the BA56-12SRWA is suitable for outdoor use, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
  • The maximum forward current for BA56-12SRWA is 30mA, but it's recommended to operate at 20mA or less for optimal performance and lifespan.
  • Yes, the BA56-12SRWA is designed to withstand vibrations up to 10G, but it's recommended to secure the component properly to prevent mechanical stress.
  • Yes, the BA56-12SRWA is RoHS compliant, meaning it meets the EU's Restriction of Hazardous Substances directive.
