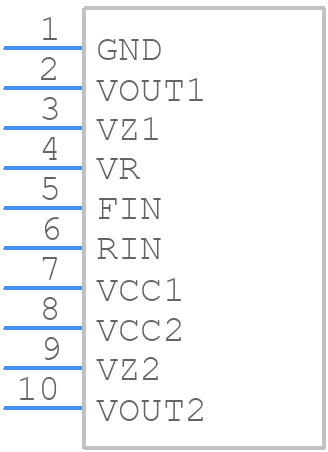

BA6109 - ROHM Semiconductor

BA6109 Details

• Manufacturer Part Number:

  BA6109

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Obsolete

• Part Package Code:

  SFM

• Package Description:

  SIP-10

• Pin Count:

  10

• ECCN Code:

  EAR99

• HTS Code:

  8542.39.00.60

• Manufacturer:

  ROHM Semiconductor

• YTEOL:

  0

• Additional Feature:

  BUILT-IN FUNCTION TO ABSORB MOTOR RUSH CURRENTS

• Analog IC - Other Type:

  3-PHASE BRUSHLESS DC MOTOR CONTROLLER

• JESD-30 Code:

  R-PSFM-T10

• Number of Functions:

  1

• Number of Terminals:

  10

• Operating Temperature-Max:

  75 °C

• Operating Temperature-Min:

  -25 °C

• Output Current-Max:

  0.8 A

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SFM

• Package Equivalence Code:

  SIP10,.06

• Package Shape:

  RECTANGULAR

• Package Style:

  FLANGE MOUNT

• Qualification Status:

  Not Qualified

• Supply Current-Max (Isup):

  30 mA

• Supply Voltage-Max (Vsup):

  18 V

• Supply Voltage-Min (Vsup):

  6 V

• Supply Voltage-Nom (Vsup):

  12 V

• Surface Mount:

  NO

• Technology:

  BIPOLAR

• Temperature Grade:

  COMMERCIAL EXTENDED

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE
