BC56-12GWA - Kingbright

Description: 14.22mm (0.56INCH) THREE DIGIT NUMERIC DISPLAY

Download BC56-12GWA Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
BC56-12GWA - Kingbright - PCB symbol
click to zoom
PCB Footprints

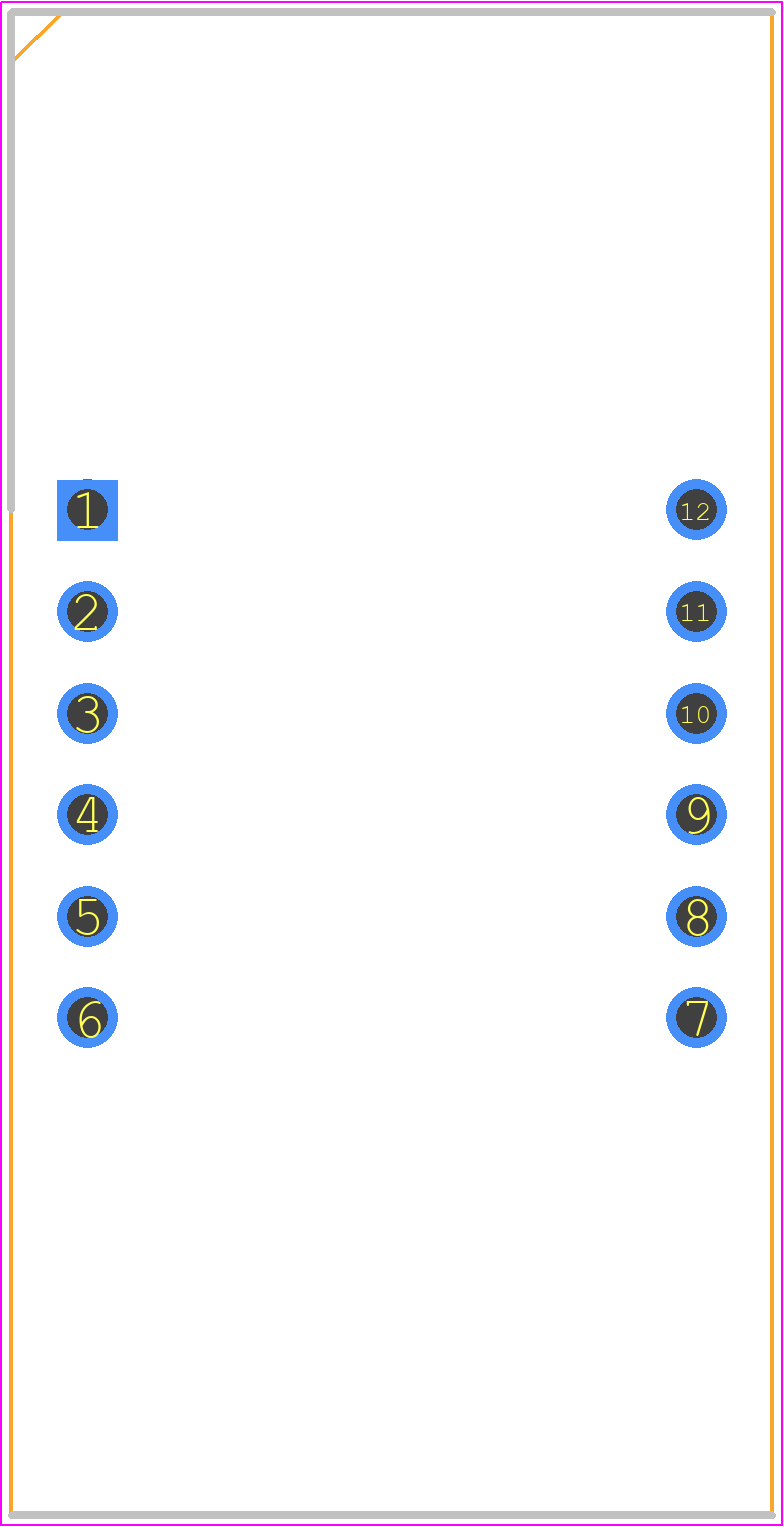

BC56-12GWA - Kingbright PCB footprint - Dual-In-Line Sockets - Dual-In-Line Sockets - 12p-dip-37.6x19
click to zoom
3D Models
BC56-12GWA - Kingbright - 3D model - Dual-In-Line Sockets - 12p-dip-37.6x19
click to zoom

BC56-12GWA Details

  • Manufacturer Part Number:

    BC56-12GWA

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Transferred

  • Package Description:

    ROHS COMPLIANT PACKAGE-12

  • Country Of Origin:

    Mainland China

  • HTS Code:

    8541.40.20.00

  • Manufacturer:

    Kingbright

  • YTEOL:

    6

  • Additional Feature:

    IC COMPATIBLE

  • Color:

    GREEN

  • Color@Wavelength:

    Green

  • Configuration:

    COMMON CATHODE, MULTIPLEXED, 3 DIGITS WITH DECIMAL POINT

  • Display Height:

    14.2 mm

  • Forward Current-Max:

    0.025 A

  • Forward Voltage-Max:

    2.5 V

  • Number of Characters:

    3

  • Number of Functions:

    3

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    7 SEG NUMERIC LED DISPLAY

  • Peak Wavelength:

    565 nm

BC56-12GWA Frequently Asked Questions (FAQs)

  • The recommended storage temperature for BC56-12GWA is -20°C to 30°C (-4°F to 86°F) with a relative humidity of 60% or less.
  • Yes, BC56-12GWA is suitable for outdoor applications, but it's recommended to use a suitable enclosure or coating to protect the LED from moisture and UV radiation.
  • The maximum forward current for BC56-12GWA is 30mA, but it's recommended to operate at a lower current (e.g., 20mA) for longer lifespan and reliability.
  • Yes, BC56-12GWA is compatible with lead-free soldering, but the recommended soldering temperature is 260°C (500°F) for a maximum of 10 seconds.
  • The typical viewing angle for BC56-12GWA is 120°, but this can vary depending on the specific application and optical design.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BC56-12GWA Overview

Use the download button to access the BC56-12GWA schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BC56-, or try a keyword search, such as LED Displays
