BC7701 - Holtek

Description: 2.0V~3.6V temperature -40°C~85°C 16MHz 32-pin QFN Package

Download BC7701 Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this BC7701 model

Email notifications will be applied after download.

Send part feedback

Symbol

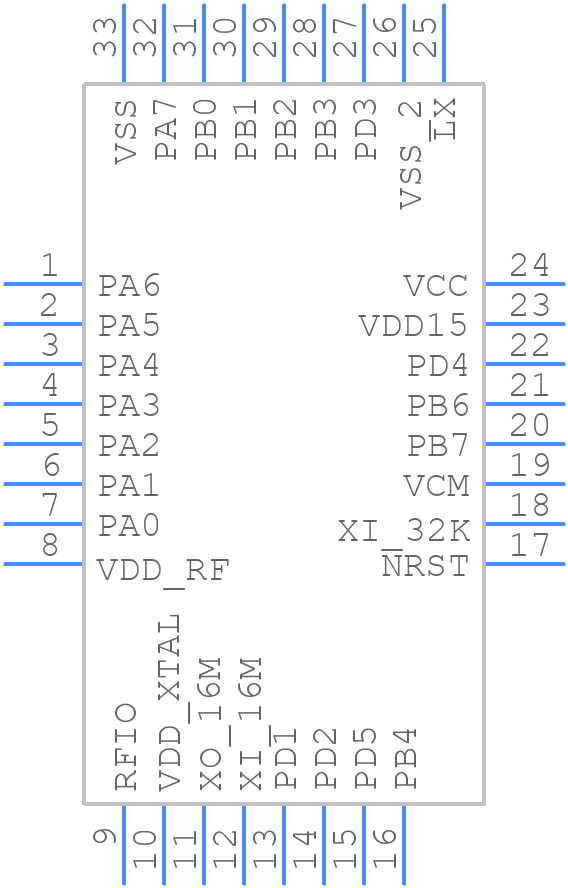

BC7701 - Holtek - PCB symbol

PCB Footprints

BC7701 - Holtek PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-pin QFN (4mm×4mm×0.55mm)

3D Models

BC7701 - Holtek - 3D model - Quad Flat No-Lead - 32-pin QFN (4mm×4mm×0.55mm)

Datasheet Download Datasheet
Stock & Prices Price & Stock for BC7701
Part Number BC7701
Manufacturer Holtek
Pin Count 33
Part Category Integrated Circuit
Package Category Quad Flat No-Lead
Footprint Name Quad Flat No-Lead - 32-pin QFN (4mm×4mm×0.55mm)
Released Date Mar 29, 2023
Last Modified Date Mar 29, 2023 12:01 PM UTC
Pinout / Pin List Click Here (Member Only)

BC7701 Details

Manufacturer Part Number:
BC7701
Manufacturer:
Holtek Semiconductor Inc

Trust Checks

Community Provided

System Verified

Community Approved

BC7701 Overview

Use the download button to access the BC7701 schematic symbol, PCB footprint, and 3D model.
