Part Image

BC846BPN-TP - MCC

Description: Bipolar (BJT) Transistor Array NPN, PNP 65V 100mA 100MHz 200mW Surface Mount SOT-363

Download BC846BPN-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

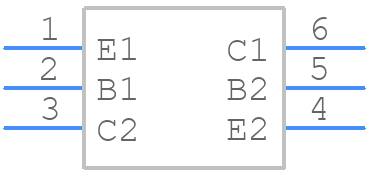

BC846BPN-TP - MCC - PCB symbol
click to zoom
PCB Footprints
BC846BPN-TP - MCC PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363 (Thicknes 1.2mm)
click to zoom
3D Models
BC846BPN-TP - MCC - 3D model - SOT23 (6-Pin) - SOT-363 (Thicknes 1.2mm)
click to zoom

BC846BPN-TP Details

  • Manufacturer Part Number:

    BC846BPN-TP

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Vietnam

  • ECCN Code:

    EAR99

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    65 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN AND PNP

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    100 MHz

BC846BPN-TP Frequently Asked Questions (FAQs)

  • The recommended storage temperature for BC846BPN-TP is -40°C to 150°C.
  • Yes, the BC846BPN-TP transistor is lead-free and RoHS compliant, making it suitable for use in environmentally friendly designs.
  • The BC846BPN-TP transistor is commonly used in general-purpose switching and amplification applications, such as in audio equipment, power supplies, and electronic controls.
  • While the BC846BPN-TP transistor can be used in high-frequency applications, its transition frequency (fT) is around 100 MHz, so it's not ideal for very high-frequency applications. However, it can still be used in lower-frequency RF applications or as a low-noise amplifier.
  • To ensure the reliability of the BC846BPN-TP transistor, follow proper PCB design and layout guidelines, use adequate heat sinking, and operate the transistor within its recommended operating conditions and ratings.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BC846BPN-TP Overview

Use the download button to access the BC846BPN-TP schematic symbol, PCB footprint, and 3D model.
