BC846S-TP - MCC

Description: Small Signal Bipolar Transistors

Download BC846S-TP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

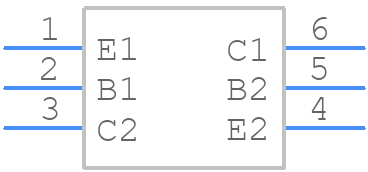

Symbol
BC846S-TP - MCC - PCB symbol
click to zoom
PCB Footprints
BC846S-TP - MCC PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - SOT-363 (Thicknes 1.2mm)
click to zoom
3D Models
BC846S-TP - MCC - 3D model - SOT23 (6-Pin) - SOT-363 (Thicknes 1.2mm)
click to zoom

BC846S-TP Details

  • Manufacturer Part Number:

    BC846S-TP

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Pin Count:

    6

  • Country Of Origin:

    Mainland China, Vietnam

  • ECCN Code:

    EAR99

  • Manufacturer:

    Micro Commercial Components

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Base Capacitance-Max:

    4.6 pF

  • Collector-Emitter Voltage-Max:

    65 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    110

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e3

  • Moisture Sensitivity Level:

    1

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -55 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Polarity/Channel Type:

    NPN

  • Power Dissipation-Max (Abs):

    0.2 W

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    YES

  • Terminal Finish:

    Matte Tin (Sn)

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    10

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    80 MHz

  • VCEsat-Max:

    0.3 V

BC846S-TP Frequently Asked Questions (FAQs)

  • The recommended operating temperature range for the BC846S-TP is -55°C to 150°C, although the datasheet only specifies a storage temperature range.
  • To ensure reliability in high-humidity environments, it's recommended to follow proper handling and storage procedures, such as storing the devices in a dry, nitrogen-filled environment, and using moisture-sensitive packaging.
  • The maximum allowable power dissipation for the BC846S-TP is dependent on the ambient temperature and the thermal resistance of the device. A general rule of thumb is to limit the power dissipation to 500 mW or less to ensure reliable operation.
  • Yes, the BC846S-TP can be used as a switch, but it's essential to consider the device's current and voltage ratings, as well as its switching speed and frequency. The device is not suitable for high-frequency switching applications due to its relatively slow switching times.
  • The choice of resistor values for the base and collector of the BC846S-TP depends on the specific application and the desired operating point. A general rule of thumb is to choose resistors that provide a base current of around 1/10th of the collector current, and to ensure that the collector resistor is sized to limit the collector current to within the device's ratings.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BC846S-TP Overview

Use the download button to access the BC846S-TP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BC846, or try a keyword search, such as Small Signal Bipolar Transistors
