The recommended PCB footprint for the BC847BW-QF is a standard SOT23 package with a 1.3mm x 0.8mm pad size. Nexperia provides a recommended footprint and land pattern in their application note AN11173.
To ensure reliable operation of the BC847BW-QF in high-temperature environments, follow Nexperia's recommended derating guidelines for the device. Additionally, ensure proper thermal management, such as using a heat sink or thermal pad, and consider using a thermally-enhanced package option if available.
The maximum safe operating area (SOA) for the BC847BW-QF is not explicitly stated in the datasheet. However, Nexperia provides an SOA graph in their application note AN11173, which shows the recommended operating conditions for the device.
Yes, the BC847BW-QF can be used as a switch, but it is not designed for high-frequency switching applications. The device has a limited switching speed and may not be suitable for high-frequency applications. Additionally, the device's saturation voltage and current handling capabilities should be considered when designing a switching circuit.
The BC847BW-QF has built-in ESD protection, but it is still important to follow proper ESD handling procedures when working with the device. Use an ESD wrist strap or mat, and ensure that the device is stored in an ESD-safe environment.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BC847BW-QF Overview

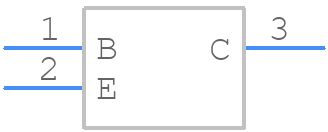

Use the download button to access the BC847BW-QF schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BC847,
or try a keyword search, such as Small Signal Bipolar Transistors
