BCM856BS,115 - Nexperia

Description: Bipolar Transistors - BJT COMPLEX DISCRETE S2022D/SOT45

Download BCM856BS,115 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

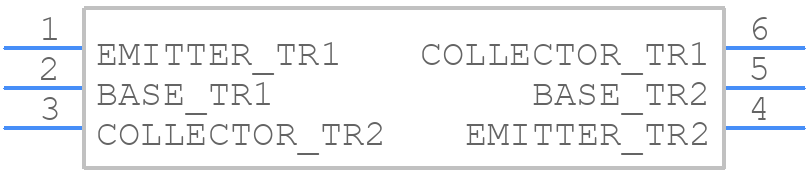

BCM856BS,115 - Nexperia - PCB symbol
click to zoom
PCB Footprints
BCM856BS,115 - Nexperia PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - (SOT363/SC-88)
click to zoom
3D Models
BCM856BS,115 - Nexperia - 3D model - SOT23 (6-Pin) - (SOT363/SC-88)
click to zoom

BCM856BS,115 Details

  • Manufacturer Part Number:

    BCM856BS,115

  • Brand Name:

    Nexperia

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP

  • Package Description:

    SC-88, 6 PIN

  • Pin Count:

    6

  • Manufacturer Package Code:

    SOT363

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • Factory Lead Time:

    8 Weeks

  • Manufacturer:

    Nexperia

  • YTEOL:

    7

  • Collector Current-Max (IC):

    0.1 A

  • Collector-Emitter Voltage-Max:

    65 V

  • Configuration:

    SEPARATE, 2 ELEMENTS

  • DC Current Gain-Min (hFE):

    200

  • JESD-30 Code:

    R-PDSO-G6

  • Number of Elements:

    2

  • Number of Terminals:

    6

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Polarity/Channel Type:

    PNP

  • Reference Standard:

    IEC-60134

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Position:

    DUAL

  • Transistor Application:

    AMPLIFIER

  • Transistor Element Material:

    SILICON

  • Transition Frequency-Nom (fT):

    175 MHz

BCM856BS,115 Frequently Asked Questions (FAQs)

  • A good PCB layout for the BCM856BS,115 should include a solid ground plane, wide power traces, and a thermal relief pattern under the device to facilitate heat dissipation. A minimum of 2 oz copper thickness is recommended.
  • To ensure reliable operation at high temperatures, ensure that the device is properly heatsinked, and the PCB is designed to minimize thermal resistance. Also, consider derating the device's power handling at high temperatures according to the datasheet.
  • The BCM856BS,115 has internal ESD protection, but it's still recommended to follow standard ESD handling precautions during assembly and handling. A minimum of HBM 2 kV and MM 200 V ESD protection is recommended.
  • Yes, the BCM856BS,115 is suitable for high-reliability and automotive applications. However, it's essential to follow the recommended operating conditions, and ensure that the device is properly qualified and validated for the specific application.
  • The recommended soldering conditions for the BCM856BS,115 are: peak temperature 260°C, time above 217°C 60 seconds, and a soldering iron temperature of 350°C. Follow the IPC-J-STD-020 standard for reflow soldering.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BCM856BS,115 Overview

Use the download button to access the BCM856BS,115 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BCM85, or try a keyword search, such as Small Signal Bipolar Transistors
