BD14000EFV-CE2 - ROHM Semiconductor

Description: Automotive EDLC Cell Balancer,HTSSOP-B30

Download BD14000EFV-CE2 Model

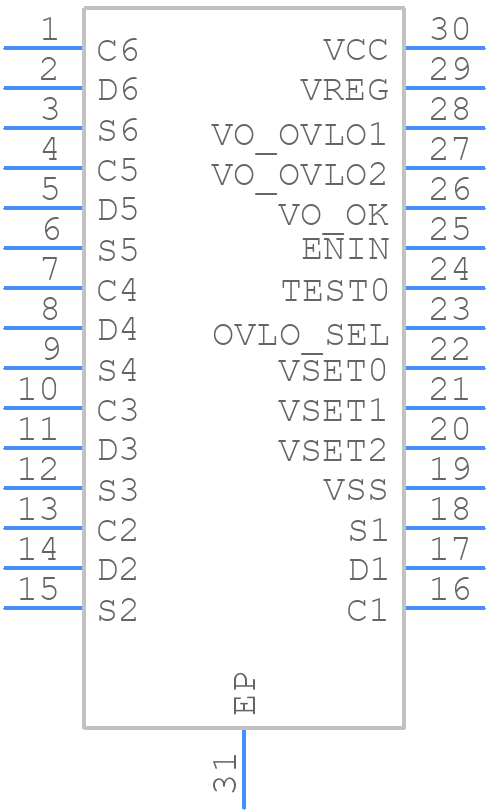

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
BD14000EFV-CE2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - HTSSOP-B30
click to zoom
3D Models
BD14000EFV-CE2 - ROHM Semiconductor  - 3D model - Small Outline Packages - HTSSOP-B30
click to zoom

BD14000EFV-CE2 Details

  • Manufacturer Part Number:

    BD14000EFV-CE2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Not Recommended

  • Package Description:

    HTSSOP-30

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    3

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    BATTERY PROTECTOR

  • JESD-30 Code:

    R-PDSO-G30

  • Length:

    10 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    30

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSSOP

  • Package Equivalence Code:

    TSSOP30,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE, SHRINK PITCH

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.08 mA

  • Supply Voltage-Max (Vsup):

    24 V

  • Supply Voltage-Min (Vsup):

    8 V

  • Supply Voltage-Nom (Vsup):

    15 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Width:

    5.6 mm

BD14000EFV-CE2 Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the BD14000EFV-CE2 is 2.5V to 5.5V.
  • To ensure the stability of the output voltage, it is recommended to use a capacitor with a value of 1uF or more between the VIN and GND pins, and to keep the input voltage stable.
  • The maximum output current of the BD14000EFV-CE2 is 1A.
  • To protect the BD14000EFV-CE2 from overheating, it is recommended to provide a heat sink or a thermal pad, and to ensure good airflow around the device.
  • The EN (Enable) pin is used to enable or disable the output voltage of the BD14000EFV-CE2. When the EN pin is high, the output voltage is enabled, and when it is low, the output voltage is disabled.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD14000EFV-CE2 Overview

Use the download button to access the BD14000EFV-CE2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD140, or try a keyword search, such as Power Management Circuits
