BD2041AFJ-E2 - ROHM Semiconductor

Description: Power Switch ICs - Power Distribution 1Ch; Lg Current Out USB High Side Switch

Download BD2041AFJ-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

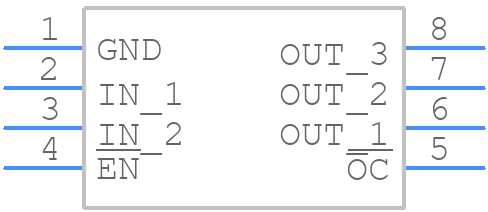

Symbol
BD2041AFJ-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD2041AFJ-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP-J8
click to zoom
3D Models
BD2041AFJ-E2 - ROHM Semiconductor - 3D model - Small Outline Packages - SOP-J8
click to zoom

BD2041AFJ-E2 Details

  • Manufacturer Part Number:

    BD2041AFJ-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    Load Switch

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    4.9 mm

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE

  • Seated Height-Max:

    1.65 mm

  • Supply Current-Max (Isup):

    0.12 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    3.9 mm

BD2041AFJ-E2 Frequently Asked Questions (FAQs)

  • ROHM recommends a thermal pad on the bottom of the package, connected to a large copper area on the PCB to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended.
  • To ensure stable operation with a high-impedance input source, add a capacitor (e.g., 10nF to 100nF) between the input pin and GND to reduce noise and oscillation.
  • The maximum allowed voltage on the EN pin is VCC + 0.3V. Exceeding this voltage may cause damage to the device.
  • While the BD2041AFJ-E2 is rated for operation up to 125°C, it's essential to consider the derating of the maximum power dissipation and the reduction of the output current capability at high temperatures.
  • To prevent latch-up, ensure that the power supply voltage (VCC) rises and falls monotonically, and avoid simultaneous switching of the input and output pins during power-on and power-off transitions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD2041AFJ-E2 Overview

Use the download button to access the BD2041AFJ-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD204, or try a keyword search, such as Power Management Circuits
