A good PCB layout for the BD3775AF-E2 should prioritize thermal dissipation, minimize noise, and ensure proper power supply decoupling. A 4-layer PCB with a dedicated ground plane and a solid ground connection to the thermal pad is recommended.
To ensure output voltage stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, a soft-start circuit can be implemented to prevent inrush currents and ensure a stable output voltage.
The maximum ambient temperature for the BD3775AF-E2 is 85°C. However, it's recommended to derate the device's power dissipation to ensure reliable operation at higher temperatures.
Yes, the BD3775AF-E2 is suitable for high-reliability applications. ROHM Semiconductor provides a reliability report and a failure rate calculation based on the JEITA standard, which can be used to evaluate the device's reliability.
To troubleshoot issues with the BD3775AF-E2, start by verifying the input voltage, output voltage, and current consumption. Check for proper PCB layout, component values, and thermal dissipation. Use an oscilloscope to analyze the output voltage and current waveforms.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD3775AF-E2 Overview

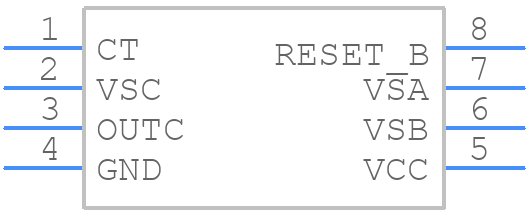

Use the download button to access the BD3775AF-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD377,
or try a keyword search, such as Power Management Circuits
