BD46302G-TR - ROHM Semiconductor

Description: ROHM BD46302G-TR, Voltage Detector 3.03V max., Reset Input 5-Pin, SSOP

Download BD46302G-TR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

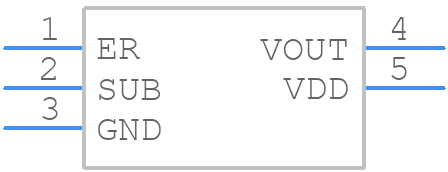

BD46302G-TR - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD46302G-TR - ROHM Semiconductor PCB footprint - SOT23 (5-Pin) - SOT23 (5-Pin) - SSOP5
click to zoom
3D Models
BD46302G-TR - ROHM Semiconductor - 3D model - SOT23 (5-Pin) - SSOP5
click to zoom

BD46302G-TR Details

  • Manufacturer Part Number:

    BD46302G-TR

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SSOP

  • Pin Count:

    5

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    0

  • Additional Feature:

    MNL RST:N;PW FL IO:N;PRG RST DLY:N;WD:N;WDO:N;WWD:N

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G5

  • Length:

    2.9 mm

  • Number of Functions:

    1

  • Number of Terminals:

    5

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Equivalence Code:

    TSOP5/6,.11,37

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.25 mm

  • Supply Current-Max (Isup):

    0.00255 mA

  • Supply Voltage-Min (Vsup):

    0.95 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3V

  • Width:

    1.6 mm

BD46302G-TR Frequently Asked Questions (FAQs)

  • ROHM recommends a 4-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation. A minimum of 2 oz copper thickness is recommended for the top and bottom layers.
  • To ensure stable operation with a high-capacitance output capacitor, ROHM recommends adding a 1-2 ohm resistor in series with the capacitor to dampen oscillations. Additionally, the output capacitor should be placed as close to the IC as possible.
  • The maximum allowed voltage on the EN pin is 6.5V. Exceeding this voltage may damage the IC.
  • Yes, the BD46302G-TR is rated for operation up to 105°C. However, the maximum junction temperature (TJ) should not exceed 125°C. Ensure proper thermal design and heat dissipation to prevent overheating.
  • The output voltage ripple can be calculated using the following formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

BD46302G-TR Overview

Use the download button to access the BD46302G-TR schematic symbol, PCB footprint, and 3D model.
