A good PCB layout for the BD5252FVE-TR should prioritize thermal dissipation. Place the device near a thermal pad or a heat sink, and ensure a low-thermal-resistance path to the PCB's ground plane. Use multiple vias to connect the thermal pad to the ground plane, and avoid placing thermal obstacles nearby.
To ensure stable operation with a varying input voltage, use a high-quality input capacitor (e.g., X7R or X5R) with a capacitance value of at least 10uF. Additionally, consider adding a voltage regulator or a voltage stabilizer to regulate the input voltage and minimize the impact of voltage fluctuations.
For optimal performance, use a high-quality input capacitor with a capacitance value of at least 10uF and a low ESR (Equivalent Series Resistance). X7R or X5R ceramic capacitors are good options. Avoid using electrolytic capacitors, as they may not provide sufficient high-frequency decoupling.
To minimize EMI, use a multi-layer PCB with a solid ground plane, and ensure that the BD5252FVE-TR is placed close to the input capacitors. Use shielded cables and connectors, and consider adding EMI filters or common-mode chokes to reduce radiation. Follow good PCB layout practices, such as separating analog and digital circuits, and using guard rings around sensitive nodes.
The maximum allowed power dissipation for the BD5252FVE-TR is dependent on the operating conditions, such as ambient temperature and airflow. As a general guideline, the maximum power dissipation is approximately 1.5W. However, it's essential to consult the datasheet and perform thermal calculations to ensure the device operates within its recommended specifications.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD5252FVE-TR Overview

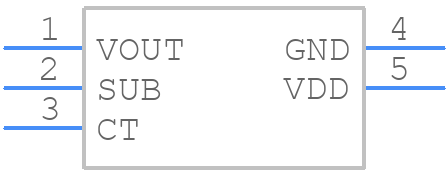

Use the download button to access the BD5252FVE-TR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD525,
or try a keyword search, such as Power Management Circuits
