BD6210F-E2 - ROHM Semiconductor

Description: 7V Max. H-bridge Drivers

Download BD6210F-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

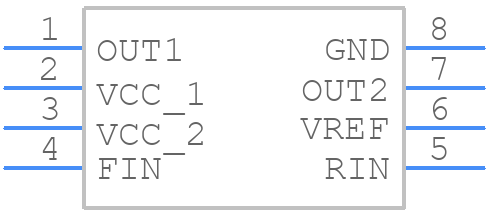

BD6210F-E2 - ROHM Semiconductor - PCB symbol
click to zoom
PCB Footprints
BD6210F-E2 - ROHM Semiconductor PCB footprint - Small Outline Packages - Small Outline Packages - SOP8
click to zoom
3D Models
BD6210F-E2 - ROHM Semiconductor - 3D model - Small Outline Packages - SOP8
click to zoom

BD6210F-E2 Details

  • Manufacturer Part Number:

    BD6210F-E2

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    7.25

  • Analog IC - Other Type:

    FULL BRIDGE BRUSH DC MOTOR CONTROLLER

  • JESD-30 Code:

    R-PDSO-G8

  • Length:

    5 mm

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.5 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Qualification Status:

    Not Qualified

  • Supply Current-Max (Isup):

    1.5 mA

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    3 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Width:

    4.4 mm

BD6210F-E2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the BD6210F-E2 should ensure that the input and output capacitors are placed close to the IC, and the power traces are wide and short to minimize inductance. A 4-layer PCB with a solid ground plane is recommended.
  • Choose X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage. The capacitance value should be between 4.7uF to 10uF. The ESR of the capacitor should be less than 100mΩ.
  • The maximum ambient temperature for the BD6210F-E2 is 85°C. However, the IC can operate up to 125°C with a derated output current.
  • Use a TVS diode or a zener diode with a voltage rating higher than the maximum input voltage to protect the IC from overvoltage. A fuse or a PTC can also be used to limit the input current.
  • Yes, the BD6210F-E2 is suitable for high-reliability applications. It has a high MTBF (Mean Time Between Failures) of 10.3 million hours and is AEC-Q100 qualified.
