A good PCB layout for the BD6230F-E2 involves placing the input and output capacitors close to the IC, using a solid ground plane, and minimizing the length of the input and output traces to reduce noise and EMI.
To ensure the stability of the output voltage, make sure to use the recommended output capacitor value and type, and place it close to the IC. Also, ensure that the input voltage is within the recommended range and that the input capacitor is properly sized.
The maximum ambient temperature for the BD6230F-E2 is 85°C, but it's recommended to derate the output current and voltage according to the temperature derating curve in the datasheet to ensure reliable operation.
Yes, the BD6230F-E2 is suitable for high-reliability applications, but it's essential to follow the recommended design guidelines, use proper PCB layout and thermal management, and perform thorough testing and validation to ensure the required level of reliability.
To troubleshoot issues with the BD6230F-E2, start by checking the input voltage, output voltage, and current. Verify that the input and output capacitors are properly sized and placed. Check for any signs of overheating, and ensure that the PCB layout is correct. If the issue persists, consult the datasheet and application notes for further guidance.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
BD6230F-E2 Overview

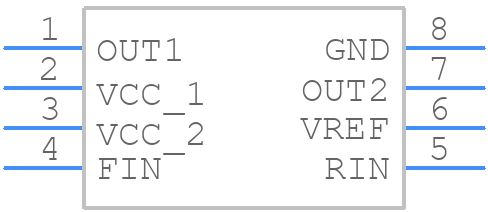

Use the download button to access the BD6230F-E2 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like BD623,
or try a keyword search, such as Motion Control Electronics
