BD63150AFM-E2 footprint, schematic symbol and 3D model by ROHM Semiconductor

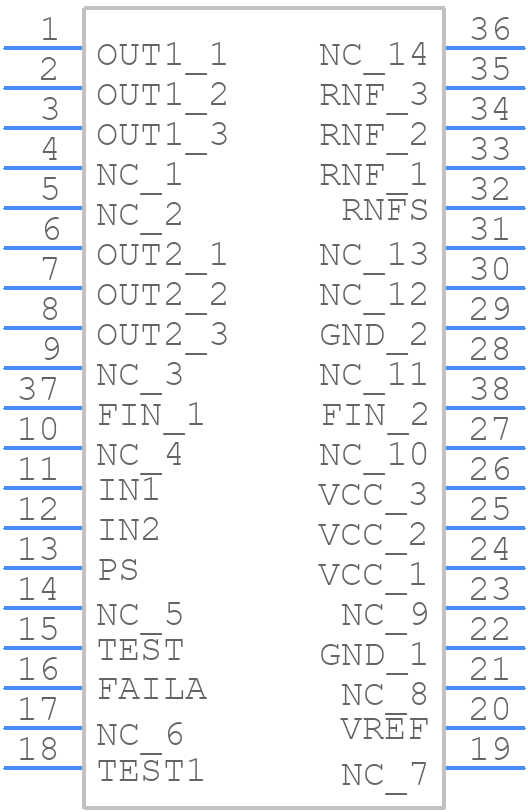

Symbol

click to zoom

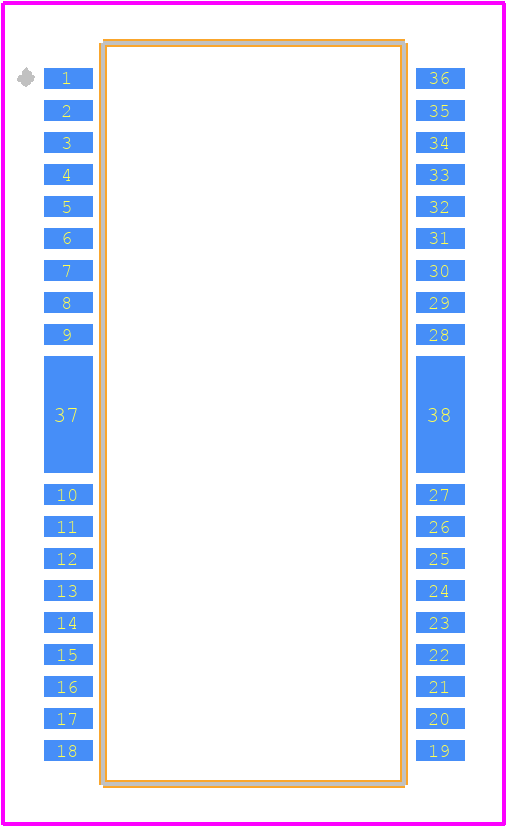

PCB Footprints

BD63150AFM-E2 - ROHM Semiconductor PCB footprint - Other - Other - BD63150AFM-E2-1

click to zoom

3D Models

BD63150AFM-E2 - ROHM Semiconductor - 3D model - Other - BD63150AFM-E2-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for BD63150AFM-E2
Part Number BD63150AFM-E2
Manufacturer ROHM Semiconductor
Pin Count 38
Part Category Integrated Circuit
Package Category Other
Footprint Name Other - BD63150AFM-E2-1
Released Date Jun 5, 2019
Last Modified Date Mar 19, 2025 2:07 PM UTC
Pinout / Pin List Click Here (Member Only)

BD63150AFM-E2 Details

Manufacturer Part Number:
BD63150AFM-E2
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
HSOP-36
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Factory Lead Time:
16 Weeks
Date Of Intro:
2017-10-25
Manufacturer:
ROHM Semiconductor
YTEOL:
8.5
Analog IC - Other Type:
HALF BRIDGE BRUSH DC MOTOR CONTROLLER
JESD-30 Code:
R-PDSO-G36
Length:
18.5 mm
Number of Functions:
1
Number of Terminals:
36
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-25 °C
Output Current-Max:
6 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HSSOP
Package Equivalence Code:
SOP44,.4,32
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, SHRINK PITCH
Seated Height-Max:
2.4 mm
Supply Voltage-Max (Vsup):
46.2 V
Supply Voltage-Min (Vsup):
8 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
YES
Temperature Grade:
OTHER
Terminal Form:
GULL WING
Terminal Pitch:
0.8 mm
Terminal Position:
DUAL
Width:
7.5 mm

BD63150AFM-E2 Frequently Asked Questions (FAQs)

ROHM recommends a 4-layer PCB with a solid ground plane and a separate power plane for the IC. The input and output capacitors should be placed close to the IC, and the PCB traces should be as short as possible to minimize EMI.
To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF with an ESR of 10mΩ or less. Additionally, the output voltage should be monitored and adjusted as needed to prevent oscillation.
The maximum ambient temperature for the BD63150AFM-E2 is 85°C. However, the IC can operate up to 105°C with a derated output current.
Yes, the BD63150AFM-E2 is suitable for high-reliability applications. ROHM has implemented various reliability tests, including temperature cycling, humidity testing, and vibration testing, to ensure the IC's reliability.
The BD63150AFM-E2 has a built-in overcurrent protection (OCP) circuit that limits the output current to 2.5A. Additionally, it is recommended to add an external fuse or PTC thermistor to protect the IC from excessive current.

Trust Checks

Expert Contribution

System Verified

Community Approved

BD63150AFM-E2 Overview

Use the download button to access the BD63150AFM-E2 schematic symbol, PCB footprint, and 3D model.
