BD71847AMWV-E2 - ROHM Semiconductor

Description: System PMIC for i.MX 8M Mini Family

Download BD71847AMWV-E2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

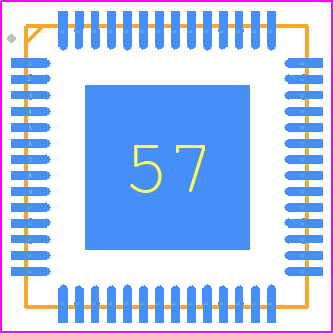

BD71847AMWV-E2 - ROHM Semiconductor PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - UQFN56BV7070
click to zoom
3D Models
BD71847AMWV-E2 - ROHM Semiconductor  - 3D model - Quad Flat No-Lead - UQFN56BV7070
click to zoom

BD71847AMWV-E2 Details

  • Manufacturer Part Number:

    BD71847AMWV-E2

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    UQFN-56

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    ROHM Semiconductor

  • YTEOL:

    9

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    INTEGRATED POWER MANAGEMENT UNIT

  • JESD-30 Code:

    S-XQCC-N56

  • Length:

    7 mm

  • Number of Functions:

    1

  • Number of Terminals:

    56

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.4 mm

  • Terminal Position:

    QUAD

  • Width:

    7 mm

BD71847AMWV-E2 Frequently Asked Questions (FAQs)

  • ROHM recommends a 4-layer PCB with a thermal relief pattern on the bottom layer to improve heat dissipation. A minimum of 2oz copper thickness is recommended for the top and bottom layers.
  • The BD71847AMWV-E2 has a specific power-up sequence requirement. Ensure that the input voltage (VIN) is applied before the enable signal (EN) is asserted. Also, ensure that the voltage rails are powered up in the correct sequence (e.g., core voltage before I/O voltage).
  • The maximum capacitance value for the output capacitors depends on the specific output rail. For the core voltage (VDD_CORE), a maximum capacitance of 22uF is recommended. For the I/O voltage (VDD_IO), a maximum capacitance of 10uF is recommended.
  • The BD71847AMWV-E2 has a built-in thermal shutdown feature that triggers when the junction temperature exceeds 150°C. When this occurs, the PMIC will shut down and restart when the temperature drops below 120°C. Ensure that your system design can handle this shutdown and restart sequence.
  • ROHM recommends a minimum input capacitance of 10uF to ensure stable operation. A larger capacitance value (e.g., 22uF) can be used for improved noise filtering and transient response.
